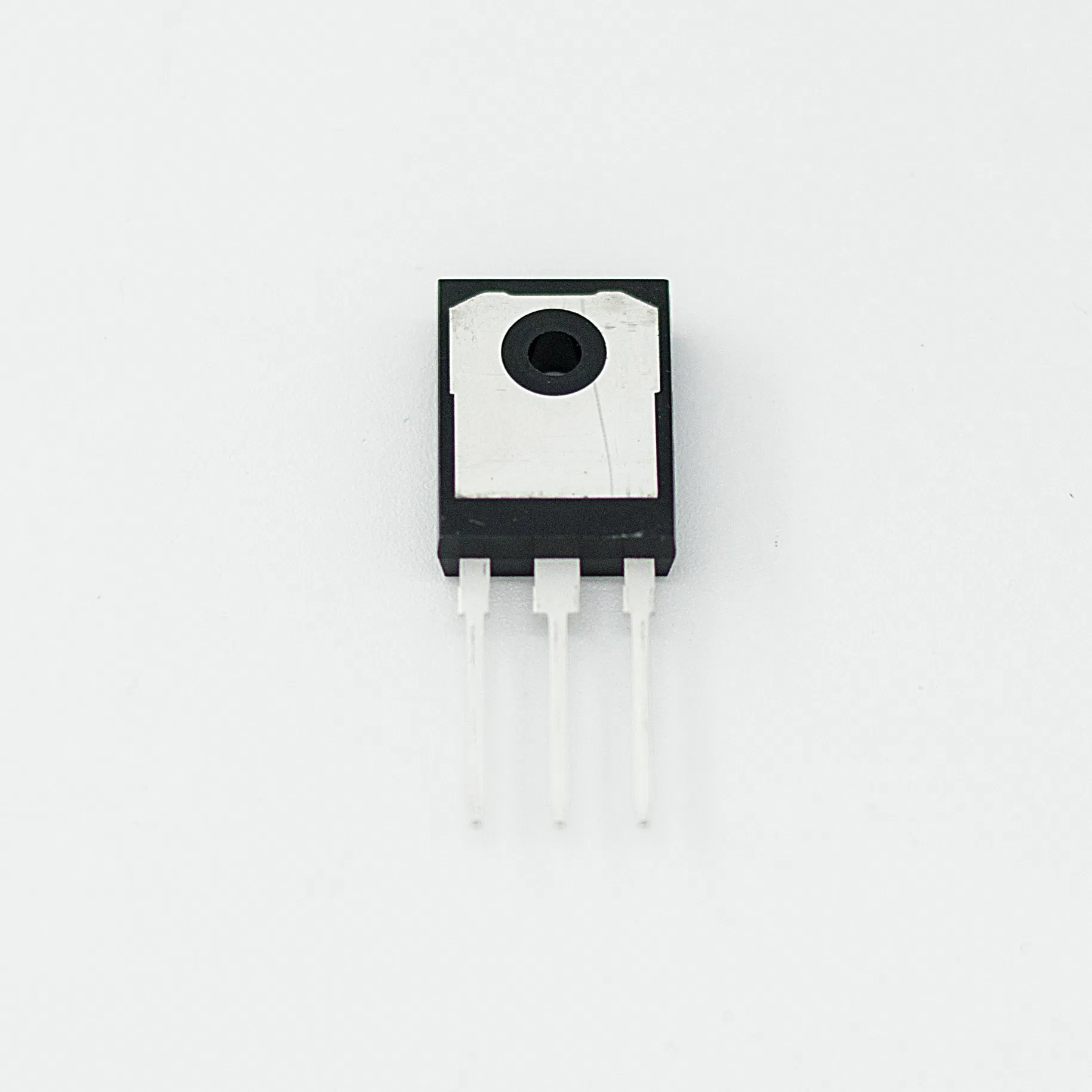

50A 650V Trenchstop Insulated Gate Bipolar Transistor Dhg50t65dlbbw

1 / 5

50A 650V Trenchstop Insulated Gate Bipolar Transistor Dhg50t65dlbbw

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

DHG50T65DLBBW

Technology

FS Trench / Discrete Device

Material

Silicon

Package

TO-247

Type

N-Type Semiconductor

Voltage

650V

Current

50A

Brand

WXDH

Origin

Wuxi, China

Production

50,000,000 Pieces/Year

📷

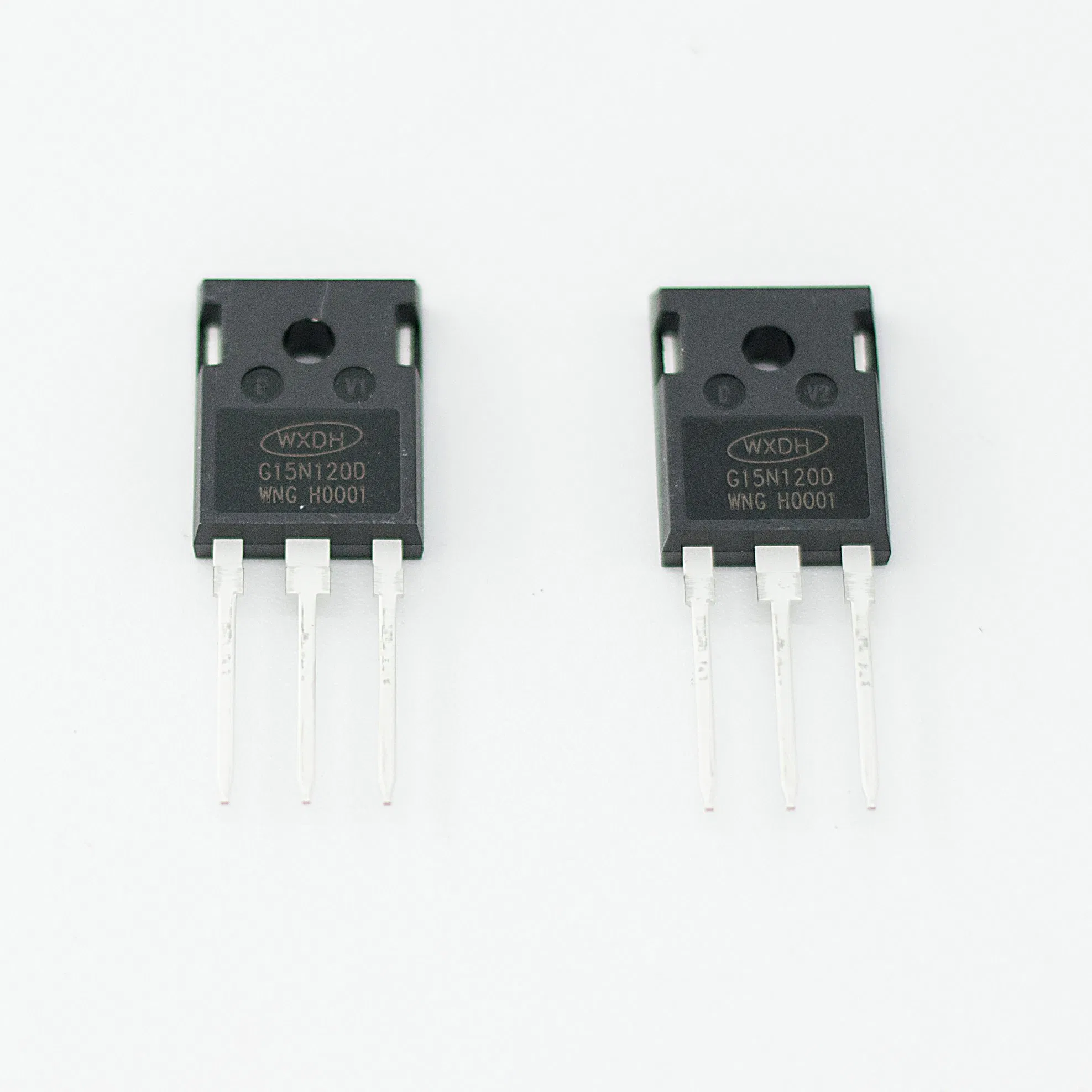

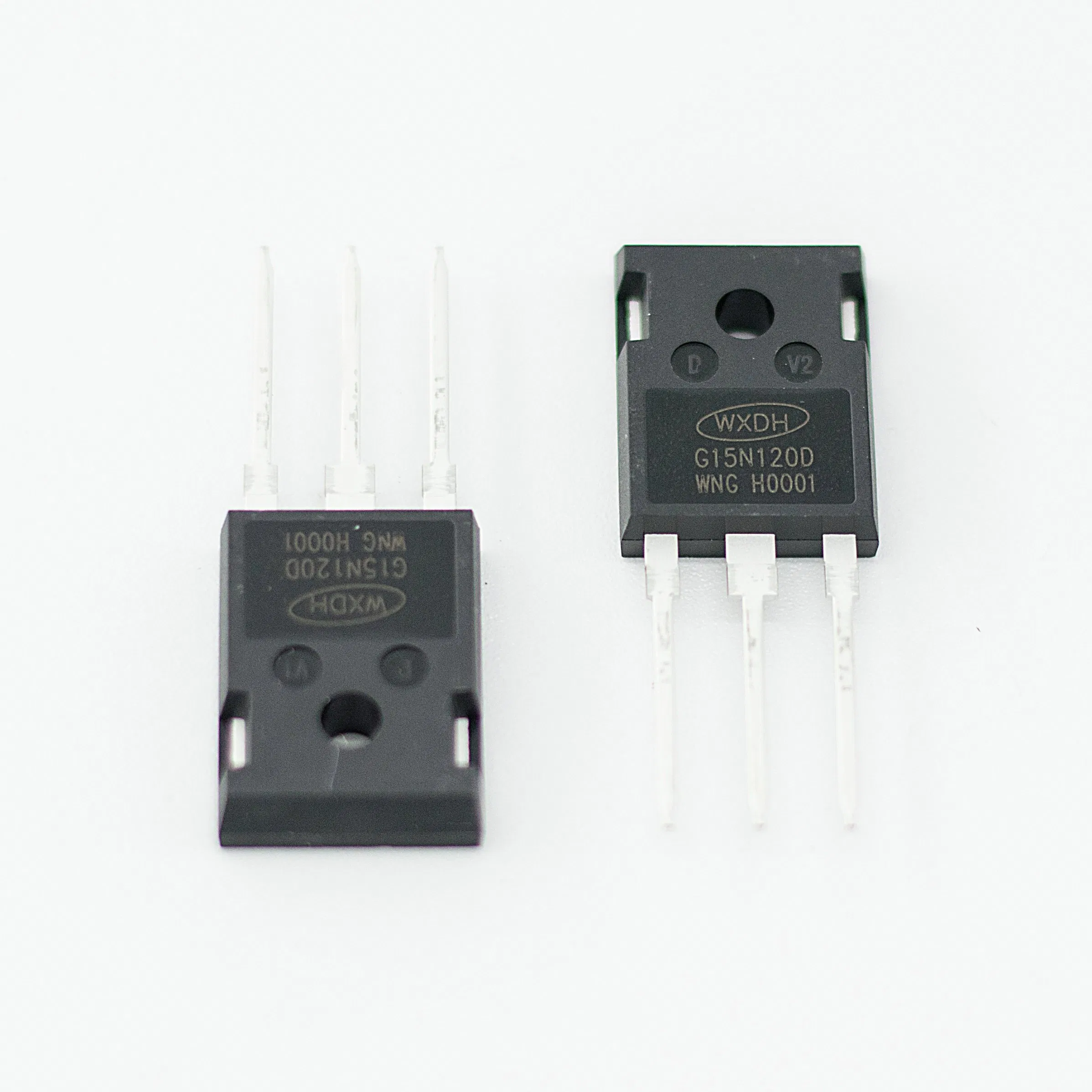

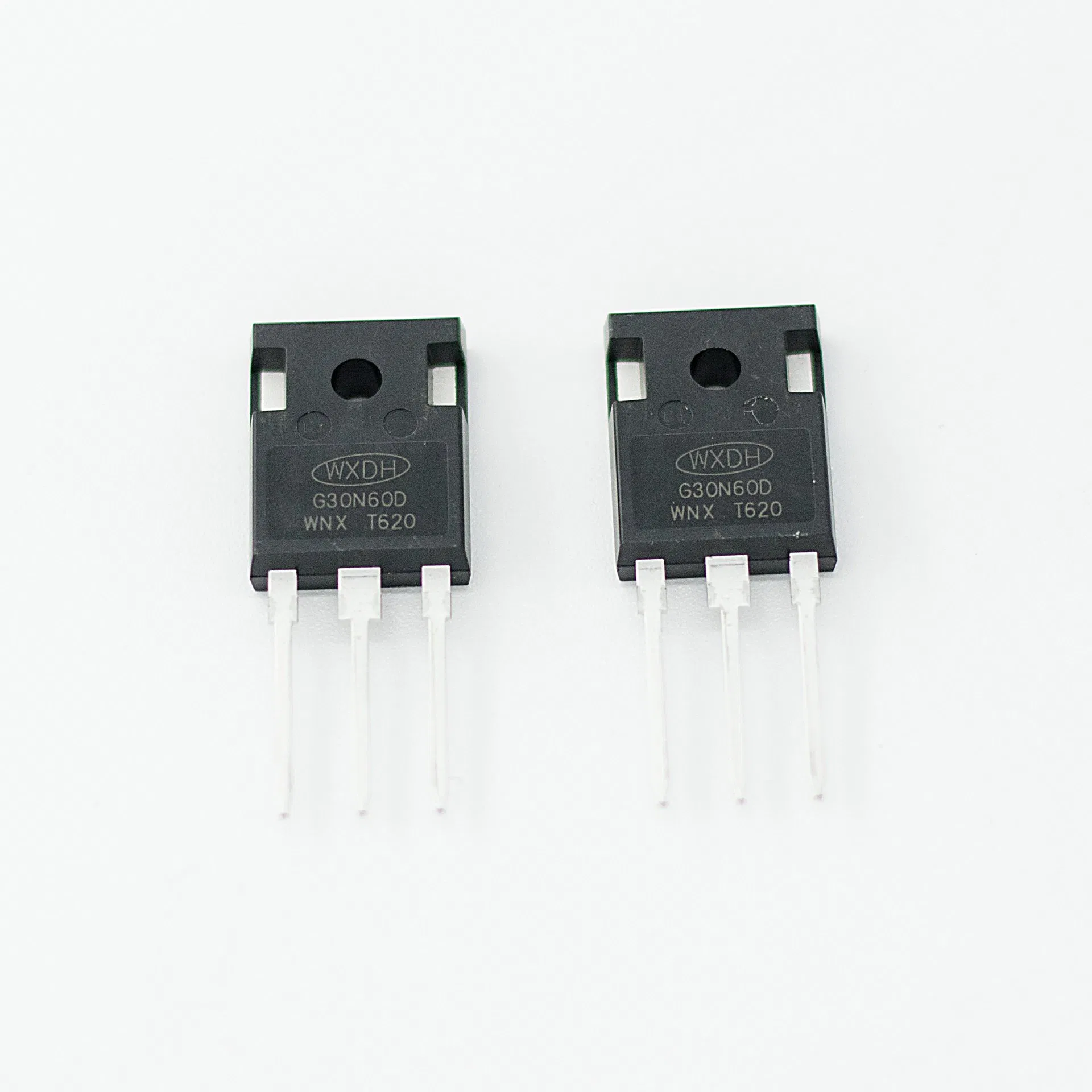

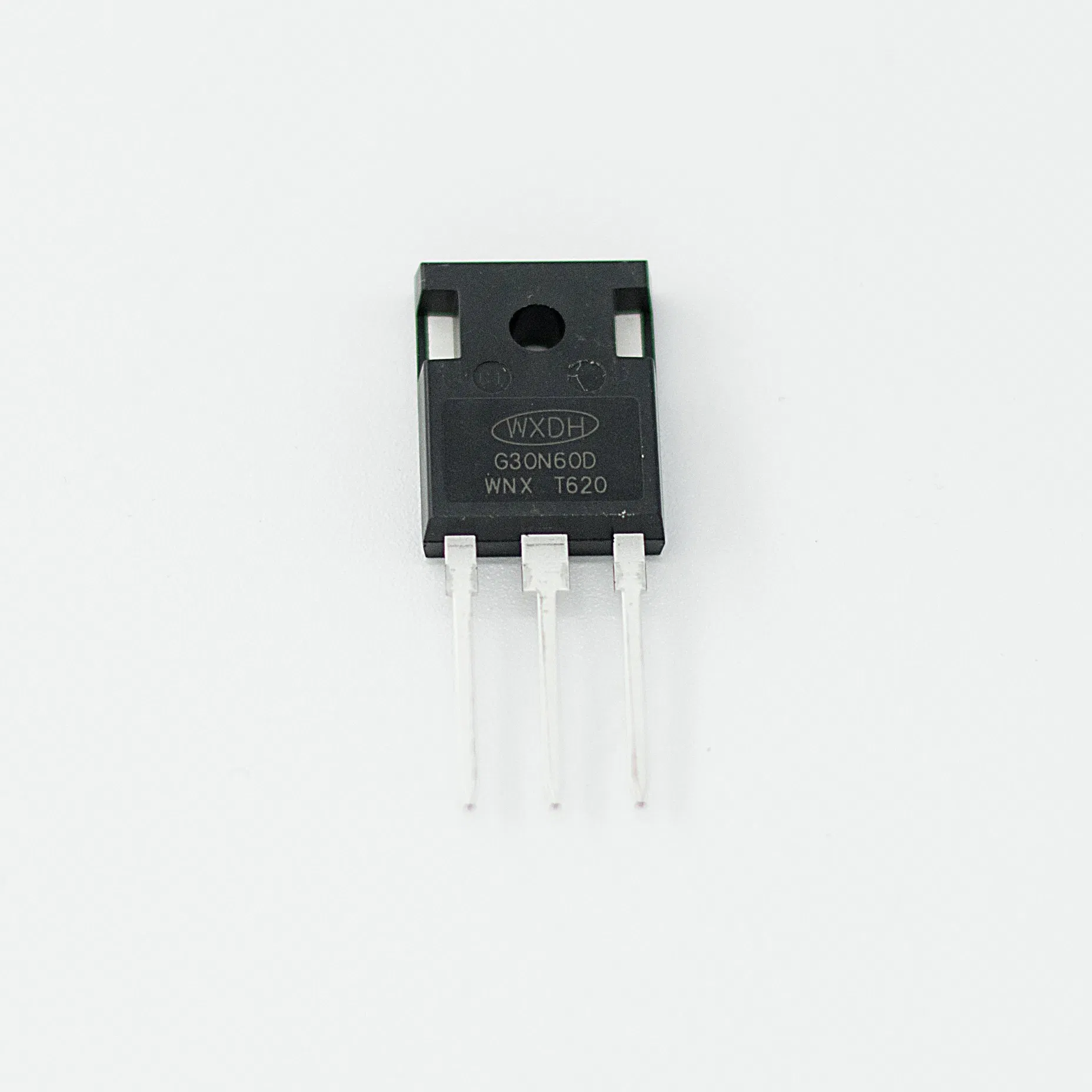

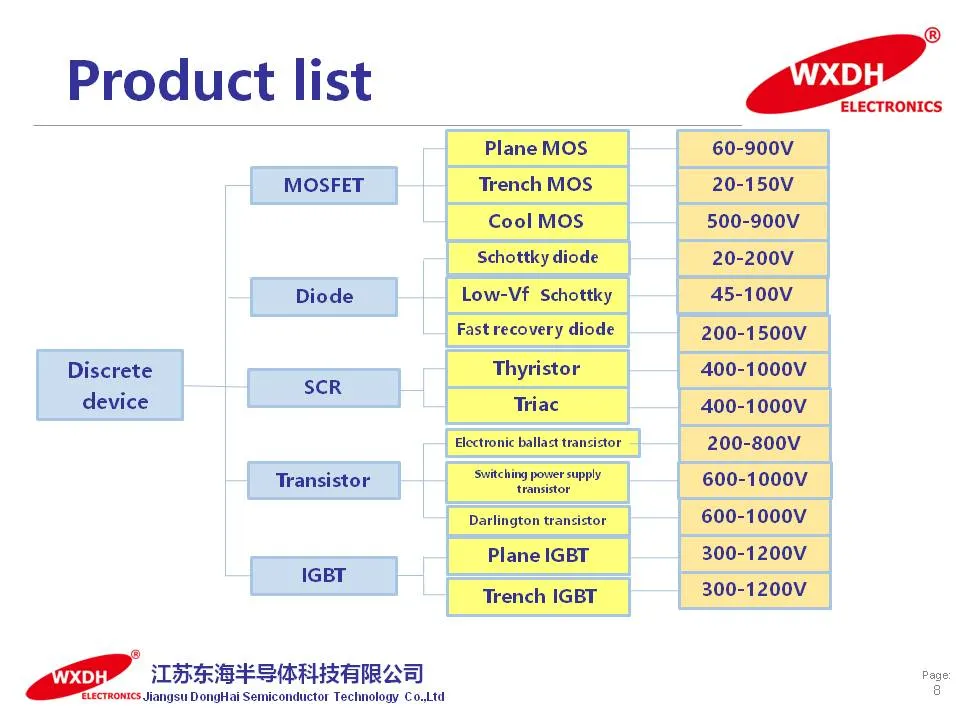

Product Gallery

📝

Technical Parameters

PARAMETER	SYMBOL	RATING	UNIT
Collector-Emitter Voltage	VCES	650	V
Gate-Emitter Voltage	VGES	±30	V
Collector Current (TJ=100ºC)	IC	50	A
Pulsed Collector Current	ICM	150	A
Diode Continuous Forward Current (100°C)	IF	100	A
Diode Pulsed Current	IFM	160	A
Total Dissipation (TC=25ºC)	Ptot	50	W
Total Dissipation (TC=100ºC)	Ptot	100	W
Junction Temperature	Tj	-55~175	ºC
Storage Temperature	Tstg	-55~150	ºC

🌟 Key Features

FS Trench Technology
Positive temperature coefficient
Low saturation voltage: VCE(sat) typ = 1.8V @ IC=50A
Extremely enhanced avalanche capability

🚀 Applications

Industrial Welding
Three-level Inverters
UPS (Uninterruptible Power Supplies)
Power Conversion Systems

📦

Packaging & Logistics

Package Size

50.00cm * 20.00cm * 30.00cm

Gross Weight

15.000kg

Packing Type

Tube (1000/box)

Compliance

RoHS Pb-free

📐

Dimensional Diagram

Frequently Asked Questions

What is the maximum current rating for the DHG50T65DLBBW?

The DHG50T65DLBBW is designed for a continuous collector current of 50A at a junction temperature of 100ºC, with a pulsed current capability up to 150A.

What package type is used for this discrete device?

This model uses the standard TO-247 package, which is ideal for high-power applications requiring efficient heat dissipation.

What are the primary benefits of FS Trench Technology?

FS (Field Stop) Trench Technology provides a low saturation voltage (VCE(sat)) and a positive temperature coefficient, making it excellent for parallel operations and reducing switching losses.

Is the DHG50T65DLBBW suitable for UPS systems?

Yes, its high efficiency and robust avalanche capability make it an ideal choice for UPS, welding equipment, and three-level inverters.

What is the operating temperature range?

The device supports a wide junction temperature range from -55ºC up to 175ºC, ensuring reliability in demanding industrial environments.

Is this product RoHS compliant?

Yes, the DHG50T65DLBBW is Pb-free and fully complies with RoHS environmental standards.
