Frequently Asked Questions
What is the maximum voltage and current for G40T65LBBN?
The G40T65LBBN is rated for a maximum Drain-Source voltage of 650V and a continuous current of 40A at 100ºC (80A at 25ºC).
What packaging type does this IGBT use?

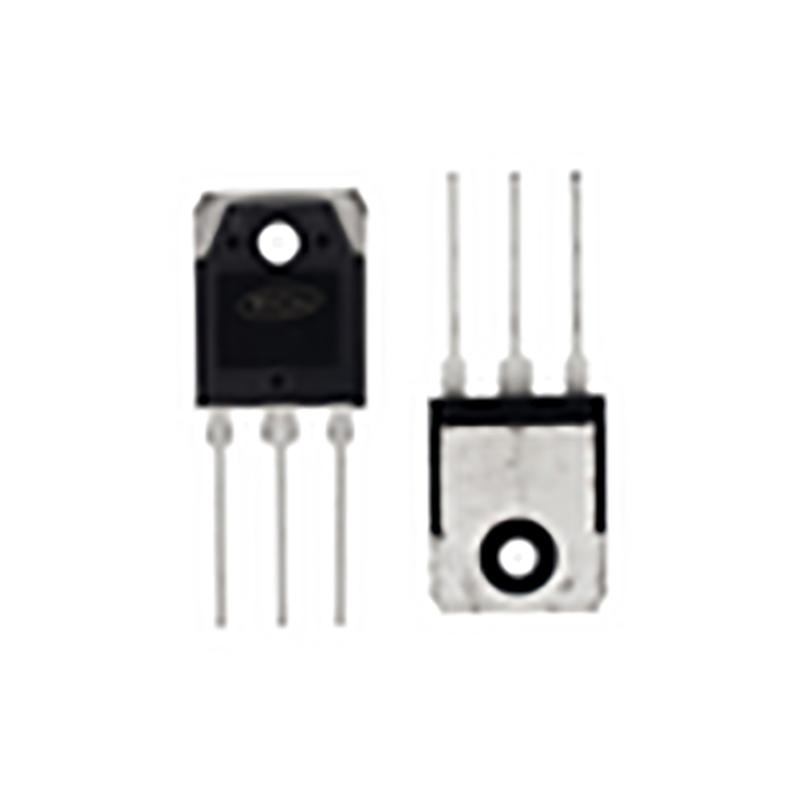

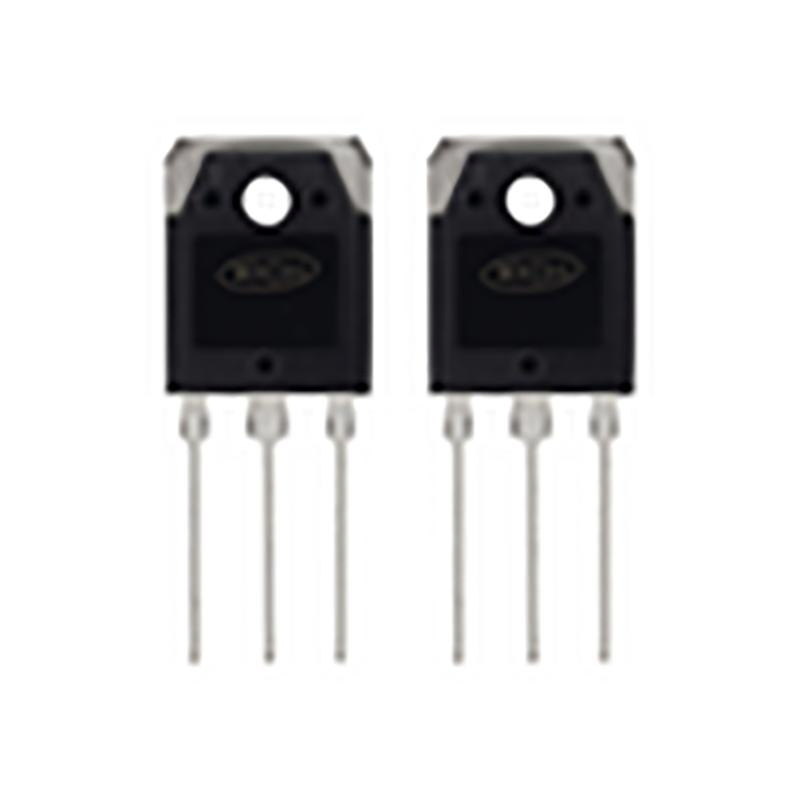

It comes in a standard TO-3PN package, which is ideal for power applications requiring efficient heat dissipation.
What technology is used in this device?
It utilizes FS Trench Technology, which provides a low saturation voltage and extremely enhanced avalanche capability.
Is this product RoHS compliant?
Yes, the G40T65LBBN is Pb-free and meets RoHS environmental standards.
What are the typical applications for this transistor?
Common applications include industrial welding machines, Uninterruptible Power Supplies (UPS), and three-level inverters.
What is the operating temperature range?
The device can operate in a junction temperature range from -55ºC to 175ºC.
