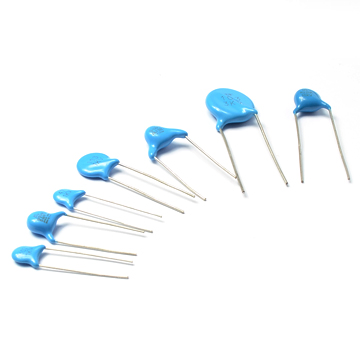

2.2NF 300VAC P7.5 Y5u Safety Ceramic Disc Capacitor
2.2NF 300VAC P7.5 Y5u Safety Ceramic Disc Capacitor
2.2NF 300VAC P7.5 Y5u Safety Ceramic Disc Capacitor
2.2NF 300VAC P7.5 Y5u Safety Ceramic Disc Capacitor
2.2NF 300VAC P7.5 Y5u Safety Ceramic Disc Capacitor
1 / 5
2.2NF 300VAC P7.5 Y5u Safety Ceramic Disc Capacitor
2.2NF 300VAC P7.5 Y5u Safety Ceramic Disc Capacitor
2.2NF 300VAC P7.5 Y5u Safety Ceramic Disc Capacitor
2.2NF 300VAC P7.5 Y5u Safety Ceramic Disc Capacitor
2.2NF 300VAC P7.5 Y5u Safety Ceramic Disc Capacitor

2.2NF 300VAC P7.5 Y5u Safety Ceramic Disc Capacitor

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
TMCC02
Voltage
Y2 300VAC
Dielectric
Y5u
Pitch
7.5mm
Package
Bulk Package
MOQ
20000PCS
Warranty
1 Year
Term
EXW
HS Code
85322410
Capacity
10000kpcs /Year
🔍 Product Description
2.2nf 20% 300VAC
P7.5 Y5U MOQ: 20000PCS
⚙️
Key Specifications & Features
  • Operating temperature: -25 to +85 °C
  • Working voltage: DC 1, 2, 3, 6.3, 10 and 15kV
  • Withstanding voltage: 1.5x working voltage
  • Capacitance tolerance: K: ±10%, M: ±20%, Z: +80%-20%
  • Insulation resistance (IR): >= 10,000MΩ (500V test)
  • Dissipation factor (DF): Y5P/Z5U/Z5V <= 2.5%
  • Temperature characteristic: SL, Y5P, Z5U, Z5V, Y5R
✅
Primary Competitive Advantages

"Green" Product | Competitive Pricing | Prompt Delivery | Quality Approvals

📦
Packaging & Lead Times

Package Size: 38.00cm * 34.00cm * 20.00cm | Gross Weight: 12.00kg

• In-stock: 3-5 days | • Regular: 7-10 days | • OEM: 15 days

📸 Detailed Photos

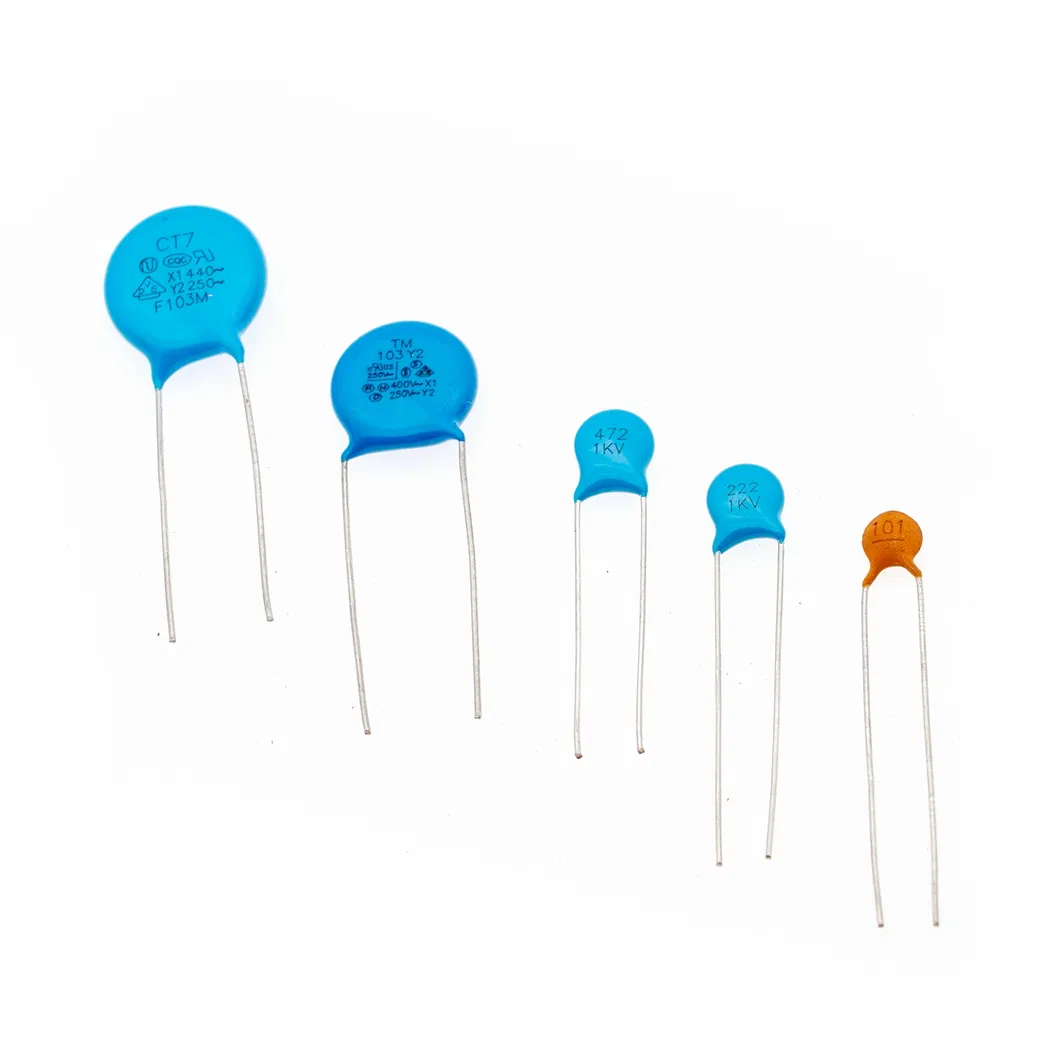

Safety Ceramic Disc Capacitor 1

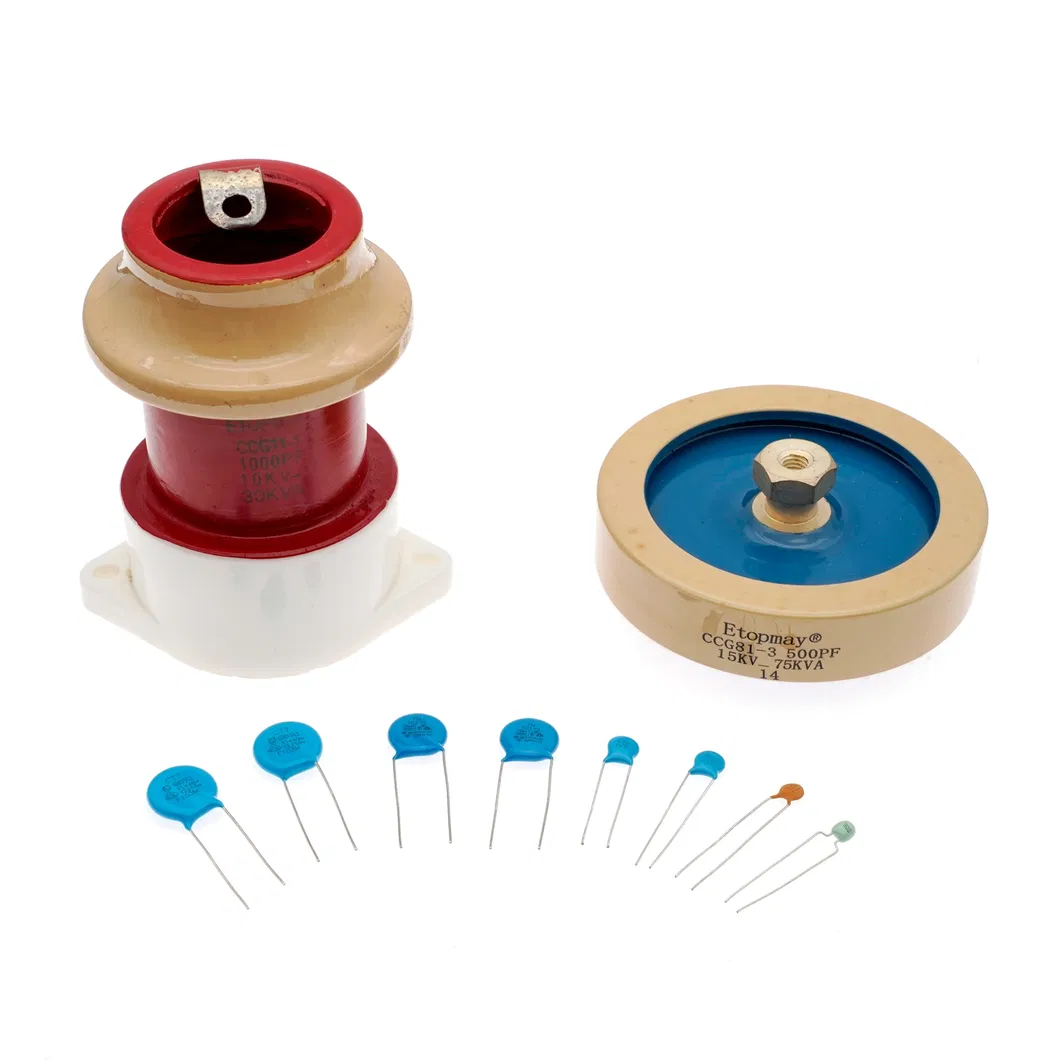

Safety Ceramic Disc Capacitor 2

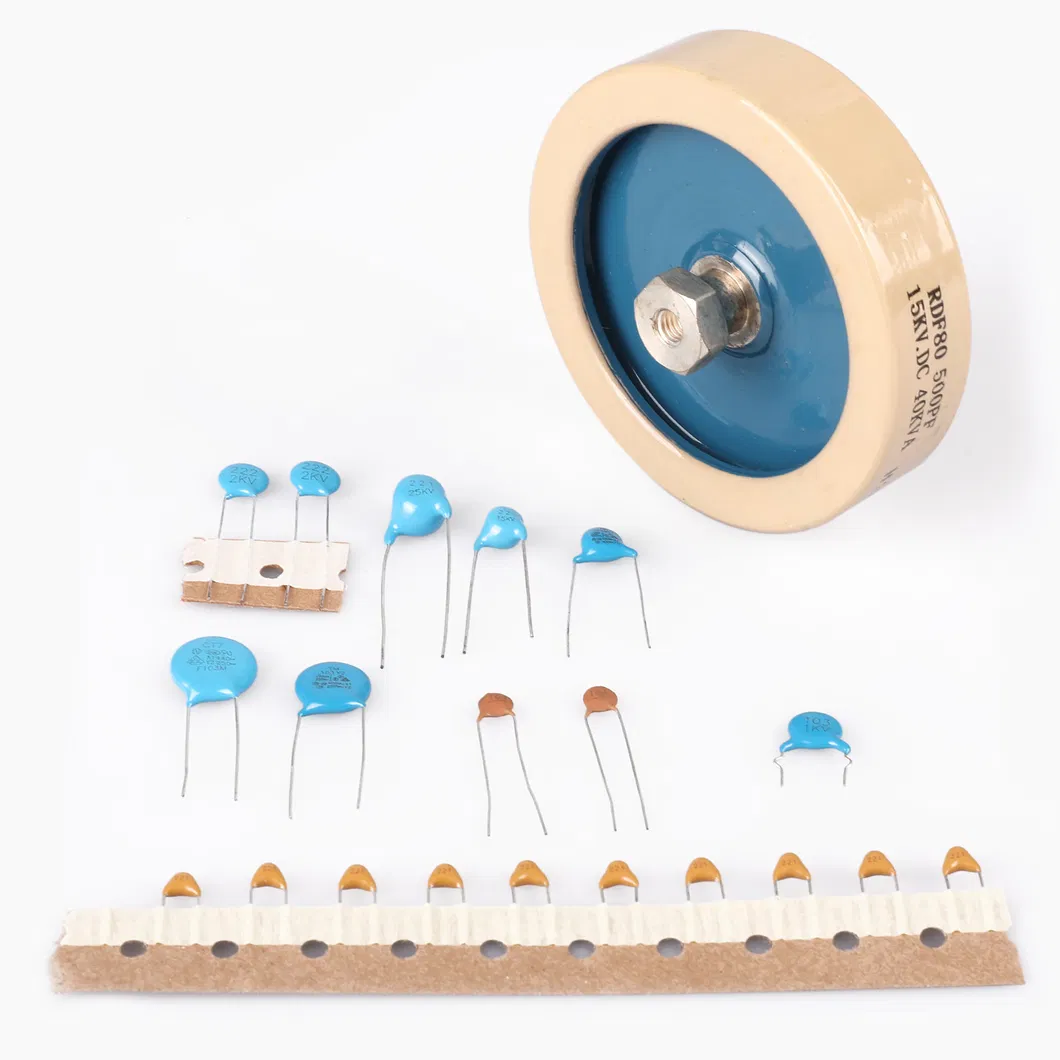

Safety Ceramic Disc Capacitor 3

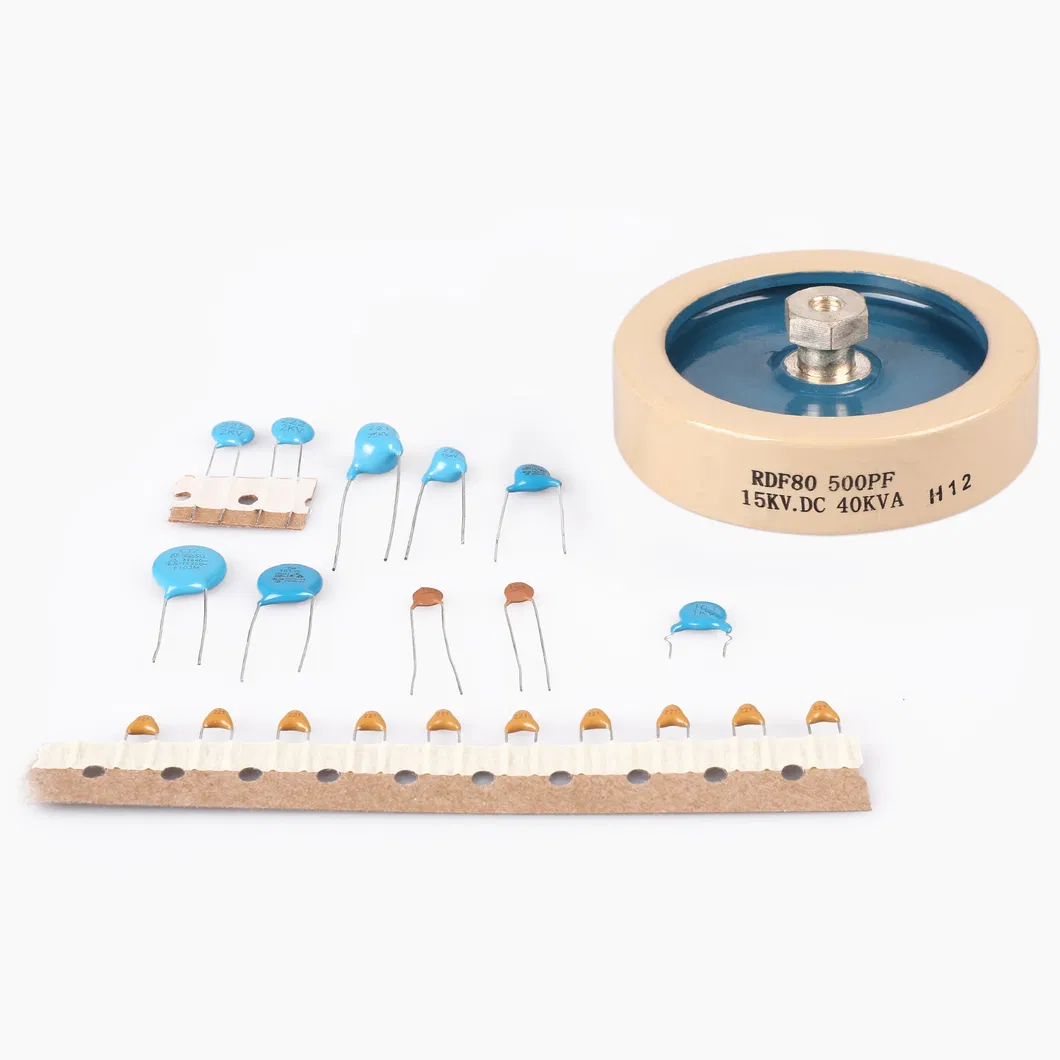

Safety Ceramic Disc Capacitor 4

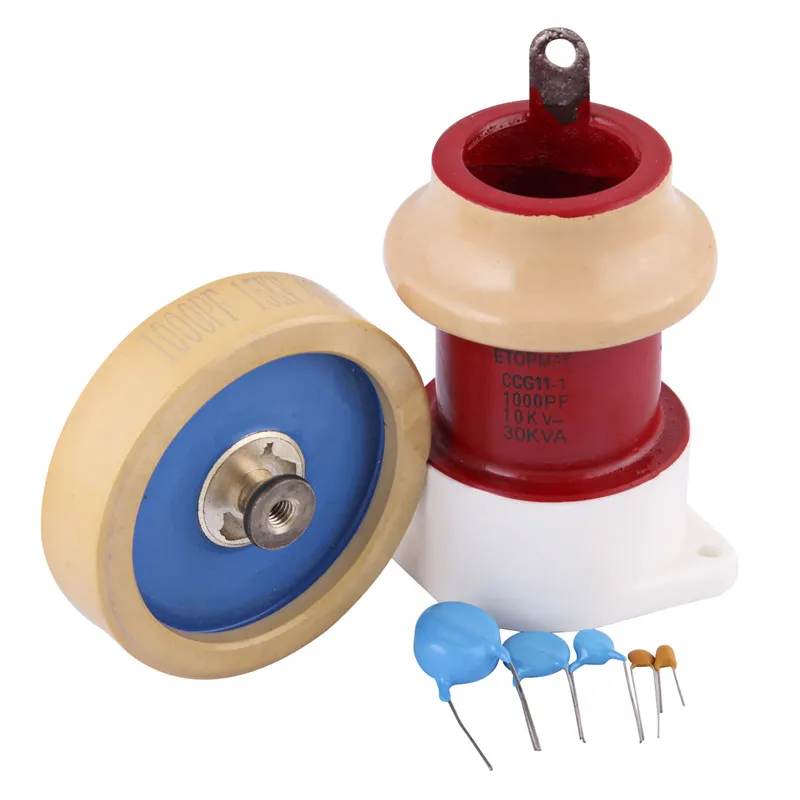

Safety Ceramic Disc Capacitor 5
❓ Frequently Asked Questions
What is the operating temperature range for these capacitors?
The operating temperature range is -25 to +85 degrees Celsius.
What quality standards do these products meet?
Our products meet CCC, CE, MIC, SA, UL, FCC, TuV, and SGS standards, and are manufactured under ISO 9001:2000, ISO 14001, and ISO/TS 16949 certifications.
What are the typical lead times for orders?
In-stock items take 3-5 days, regular orders take 7-10 days, and OEM orders typically require a 15-day lead time.
What is the insulation resistance of this model?
The insulation resistance (IR) is greater than or equal to 10,000MΩ, tested at a rated voltage of 500V for 60 seconds.
Is this a "Green" product?
Yes, the product is classified as a "Green" product and complies with RoHS and SGS specifications.
What is the minimum order quantity (MOQ)?
The MOQ for the TMCC02 model is 20,000 pieces per order.
