Basic Information
Working Frequency
High Frequency
Function
Power Triode, NPN Transistor
Collector-Emitter Voltage-Max
800 V
Collector Current-Max (IC)
1.5 a
Shipping by
DHL, UPS, FedEx, EMS
Detailed Description

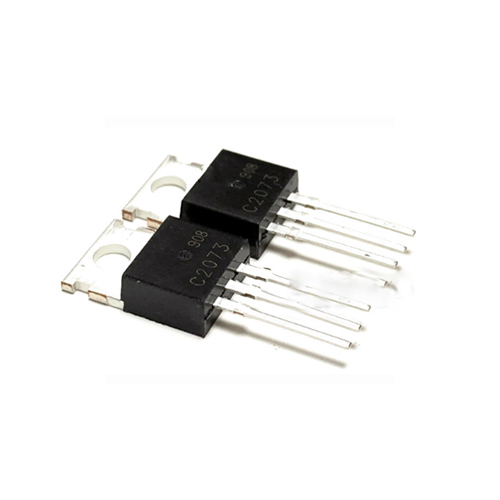

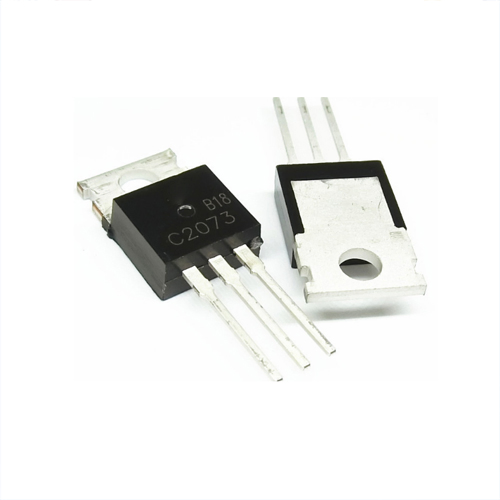

Bipolar (Bjt) Transistor
Specification
Iron and Plastic

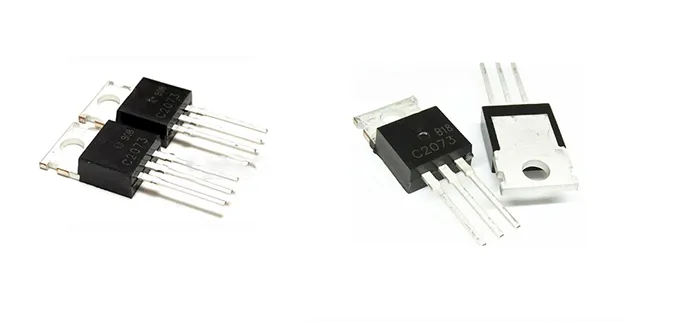

Product Description
Product Parameters
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 500mA, 10V |
| Frequency - Transition | 4MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Current - Collector (Ic) (Max) | 1.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 150 V |

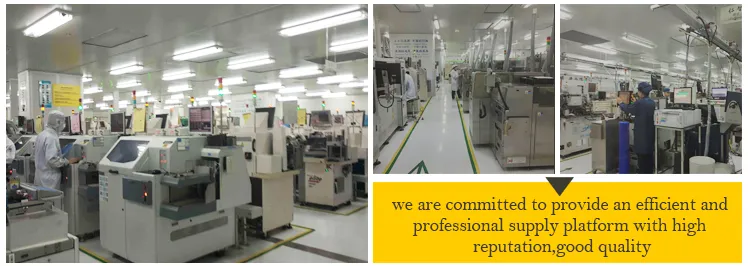

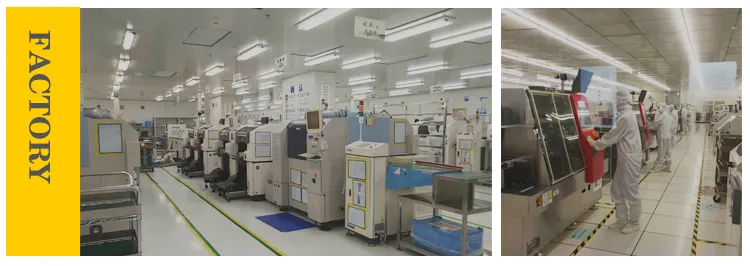

Manufacturing & Packaging
Product Packaging
Frequently Asked Questions
What types of components are available?
We provide a wide range of high-quality components including ICs, Transistors, Resistors, Capacitors, Memory, IGBT, Mosfet, Traic/SCR, and Optoelectronics.
Do you supply original parts?
Yes, we supply original materials. Many of our designed chips are based on original specifications, and we cooperate with design and development departments to ensure access to original sources.
What are the advantages of your products?
Our high-quality products are offered at reasonable prices and can completely replace original components in various applications.
Is OEM service available?
Yes, we can provide OEM services. If you have specific project requirements, please reach out with your request.
Can I purchase all required components in one place?
Absolutely. From BOM list quotations to door-to-door express service, we provide professional sales support to assist you throughout the process.
What is the typical shipping method?
We typically ship via major international couriers such as DHL, UPS, FedEx, and EMS to ensure fast and reliable delivery.
