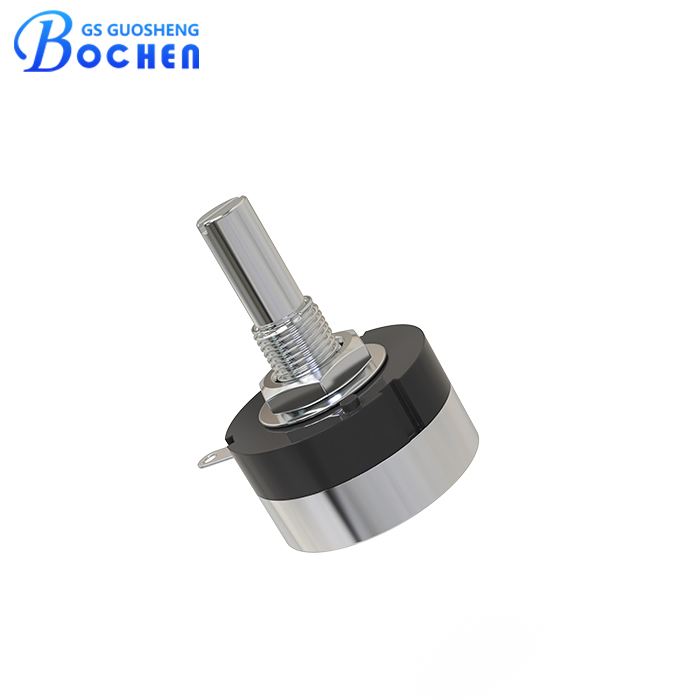

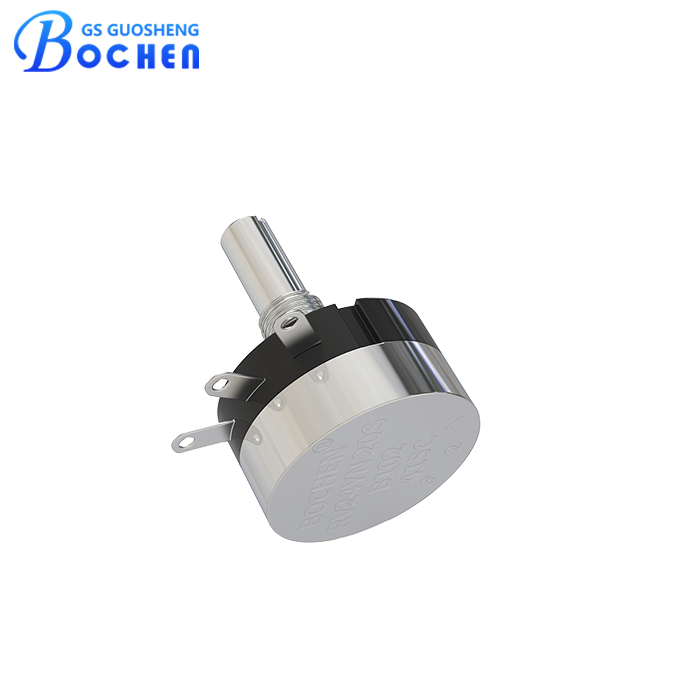

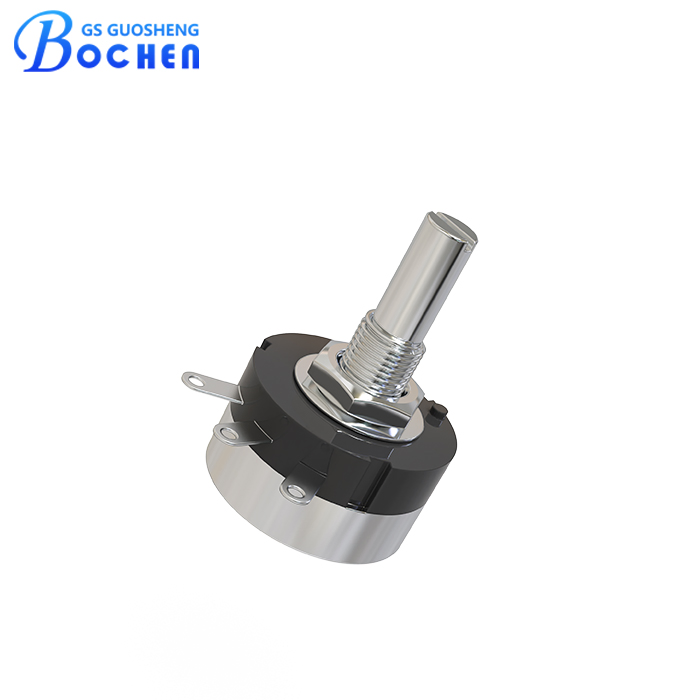

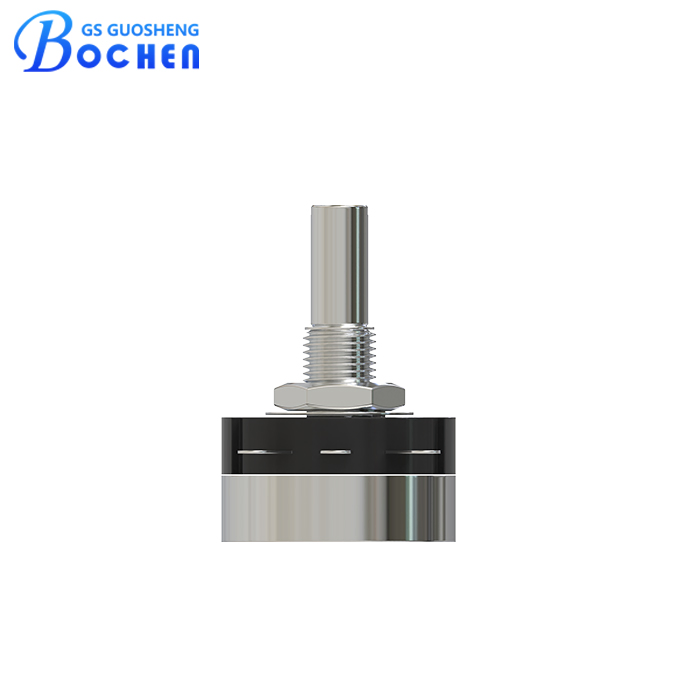

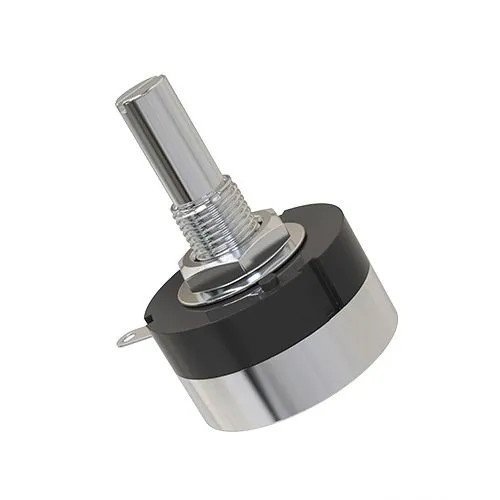

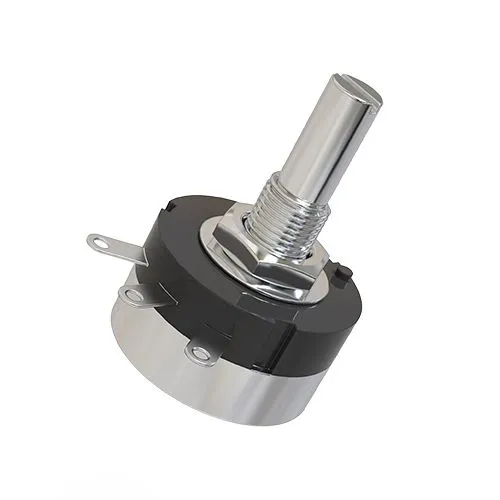

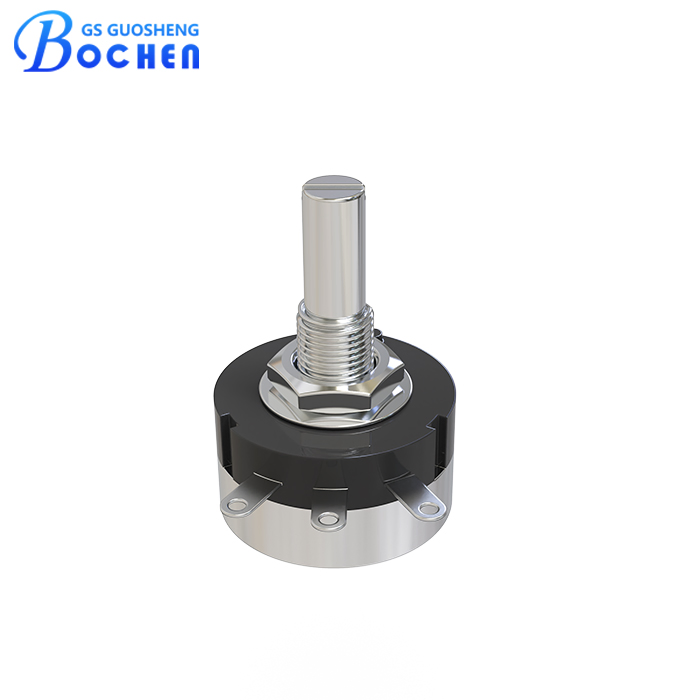

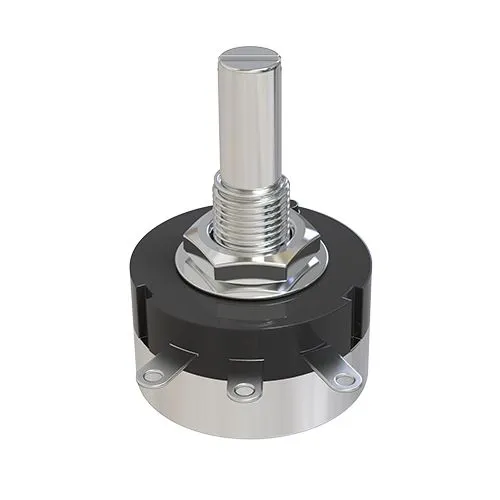

24mm Diameter Single Turn RV24YN 20S Carbon Film Rotary Potentiometer
The RV24 carbon rotary potentiometer is a versatile and reliable component designed for various applications. It features a 24mm diameter single-turn rotary design with a carbon film element, ensuring smooth and precise adjustments. The potentiometer is equipped with a sturdy metal shaft and bushing, offering durability and stability. It comes with 6mm diameter shafts available in slot, flat, or round end styles. With a power rating of 0.25W, it is suitable for low-power applications requiring reliable and adjustable resistance control.
| Electrical Characteristics | Values | |
|---|---|---|
| Electrical | Standard Resistance Range | 50 ohm ~ 2M ohm |
| Resistance Tolerance | 10% | |
| Resistance Taper | Linear | |
| Power Rating | 0.25 watt | |
| Maximum Input Voltage | 315VDC | |
| Mechanical | Mechanical Travel | 300°±5° |
| Adjustment Travel | 280°±10° | |
| Rotational Life | 15,000 cycles | |
| Environmental | Temperature Range | -10°C to 85°C |
| Load Life | 1,000 hours at 40°C | |

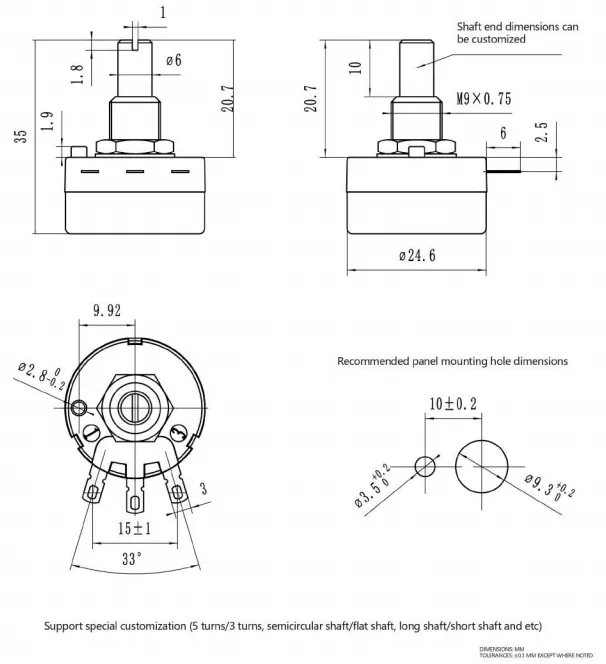

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.
Key Applications:
Our Advantages:
