2-Pole 100A Bistable Relays for Energy Management.

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
GRT508HA-100A
Phase
2
Electricity Type
Ac
Number of Pole
1
Load
High Power Relay
Protective Characteristics
Enclosed Relay
Action Principle
Electromagnetic Type
Size
Miniature
Contact Form
2b
Coil Voltage
9~48VDC
Switching Current
100A
Coil Type
Single/Double Coil Optional
Product Description

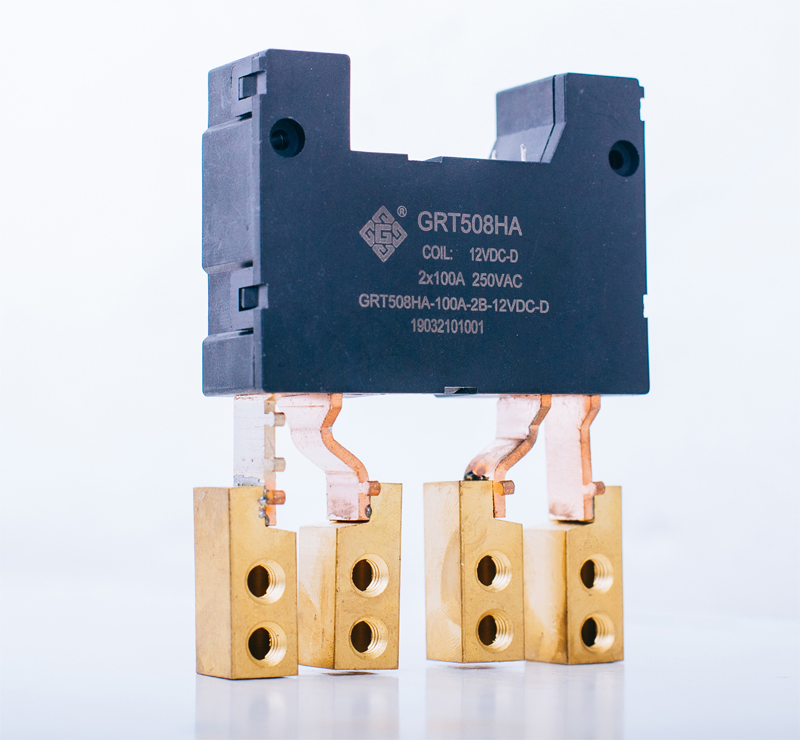

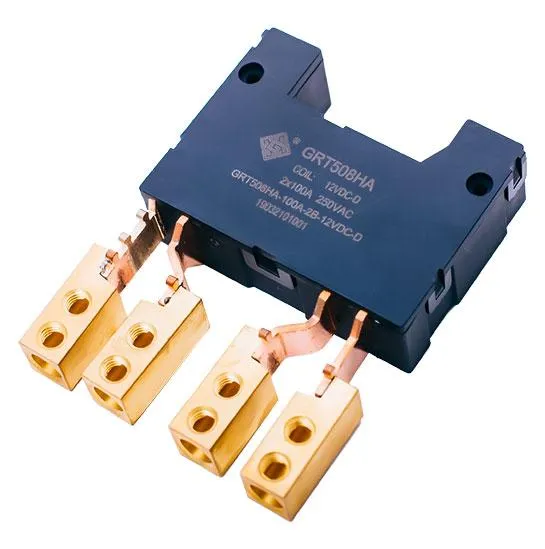

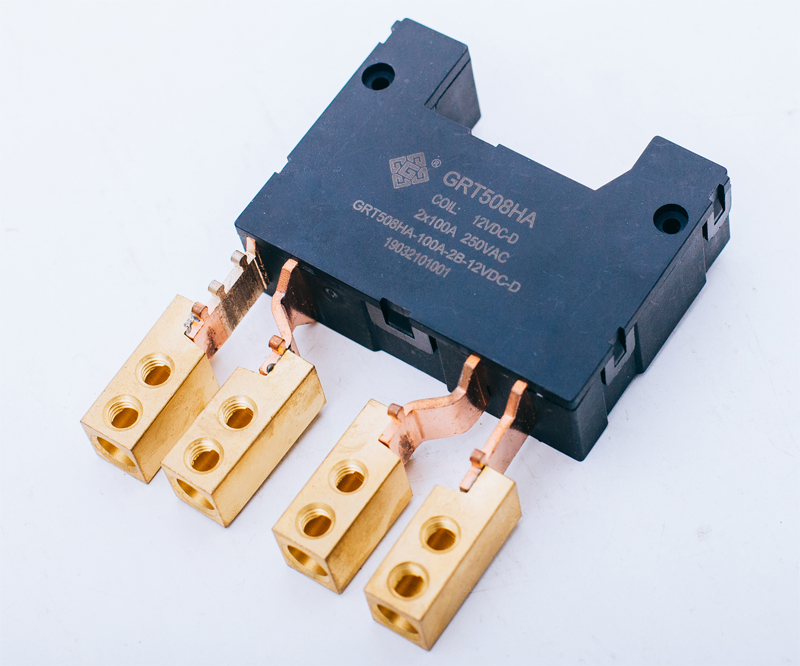

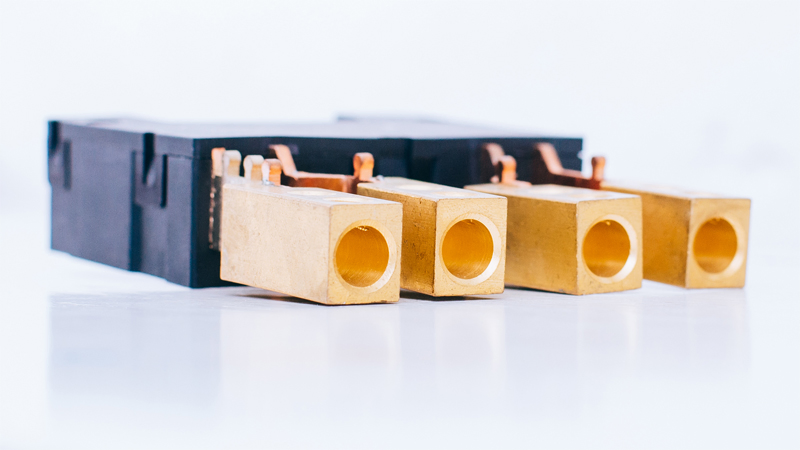

2-Pole 100A Bistable Relays

2-pole Latching Relay Features

  • 100A contact switching capability
  • Only impulse excitation needed, for single/double coil
  • Low power consumption, small in size
  • Custom assemblies available with flexible wire/copper straps
  • 4KV dielectric strength between coil and contacts
  • RoHS & IEC62055-31 UC3 compliant
  • Outline dimensions: (70 x 52 x 22) mm
Product Parameters

Contact Data

Contact Form2B
Contact MaterialAgSnO2
Contact ResistanceMax. 1.0MΩ (1A 6VDC)
Rated Load (Resistive)100A 250VAC
Max. Switching Power25000VA
Mechanical Service Life1x10^5 OPS
Electrical Service Life6X10^3 OPS (100A), 1x10^4 OPS (80A)

Characteristics

Operate / Release TimeMax. 40ms
Insulation Resistance (500VDC)Min. 1000MΩ
Dielectric Strength (Coil to Contact)4000VAC
Surge Voltage6KVAC
Creepage Distance8mm
Unit WeightAbout 170g

Environment Data

Ambient Temperature-40ºC~ 85ºC
Relative Humidity5%~85%RH
Vibration10~55Hz 1.5mm
Shock98M/S² (functional) / 980M/S² (survival)
Technical Drawings & Terminals

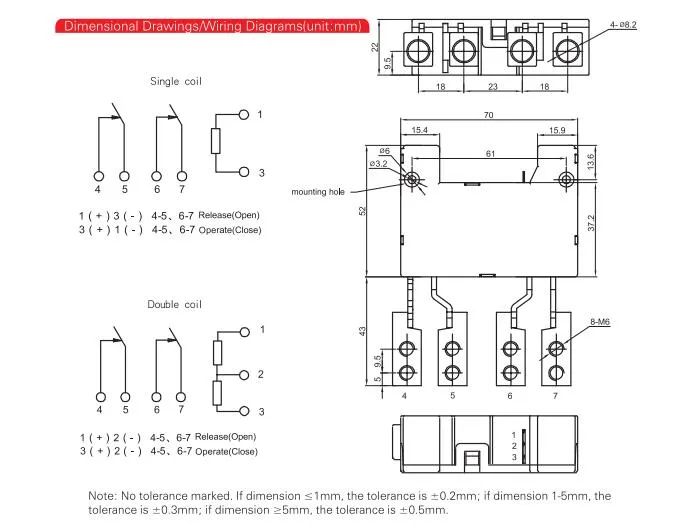

Outline Drawing

Drawing

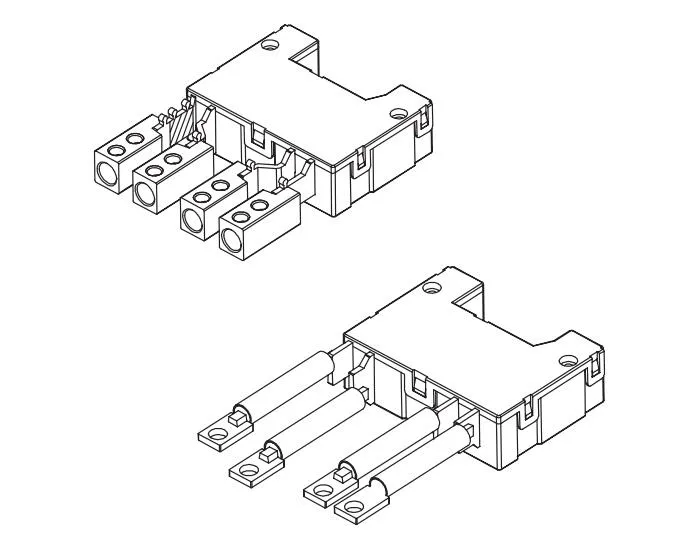

Typical Terminal Type

Terminal Type
Our Advantages
  • National high-tech enterprise.
  • Established provincial R&D center for latching relay.
  • Main products passed CQC, VDT, TUV, UL and RoHS.
  • Focusing on latching relay R&D for nearly 20 years.
  • Industrial standard drafter for electrical energy meter relays.
Advantages
Trade Show & Honor
Trade Show 1
Trade Show 2
Certification

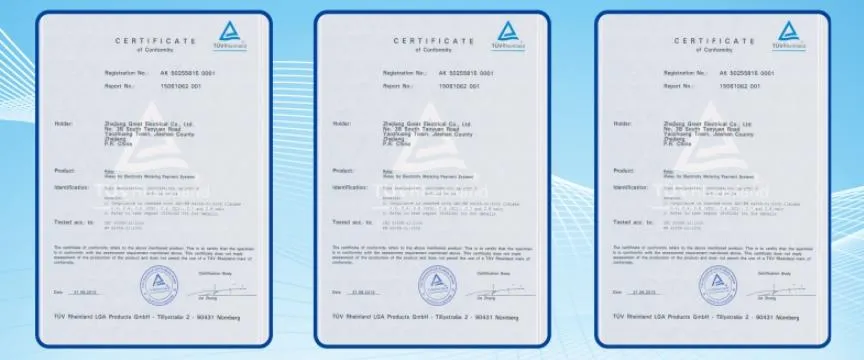

Cert 1
