Product Description

Product Overview

Model: PC10

Type: Diffused Silicon Pressure Transmitter

Output: Analog Signal

Material: 316L Stainless Steel

Range: -100kpa to 100MPa

IP Rating: IP68

Product Description

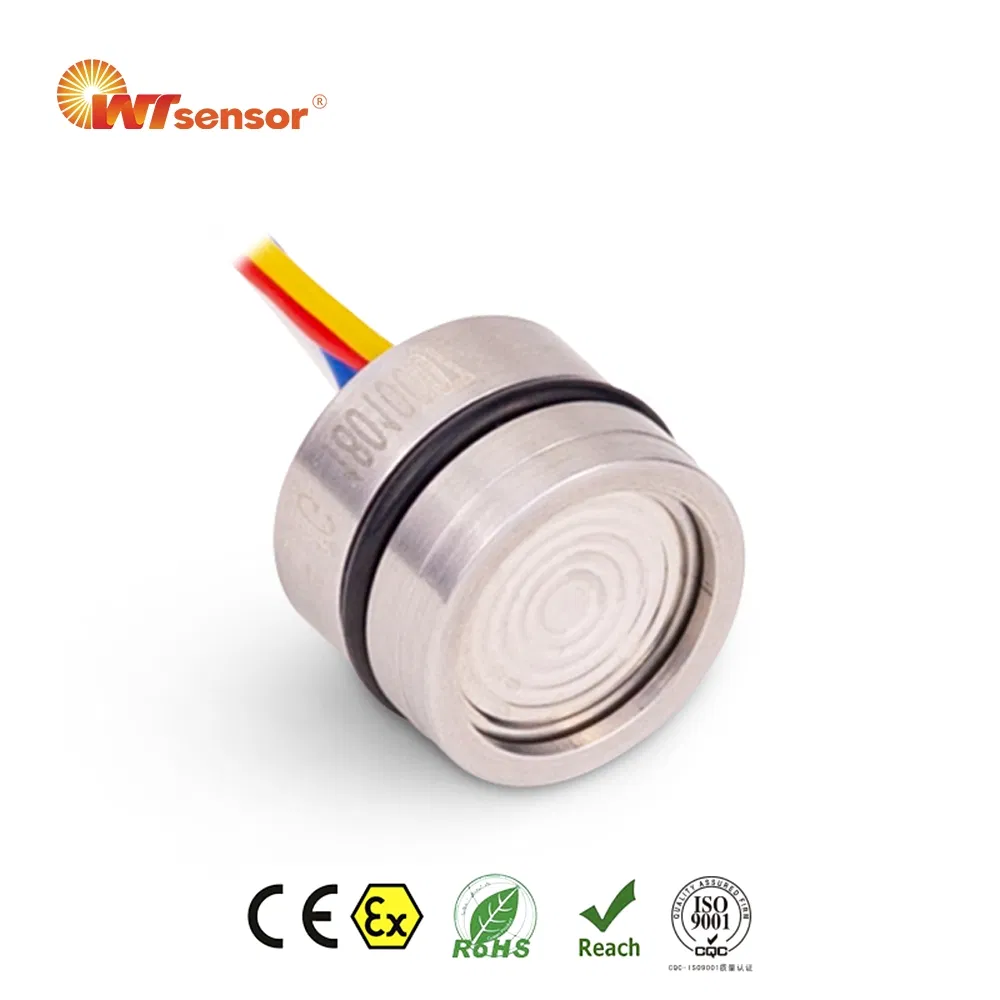

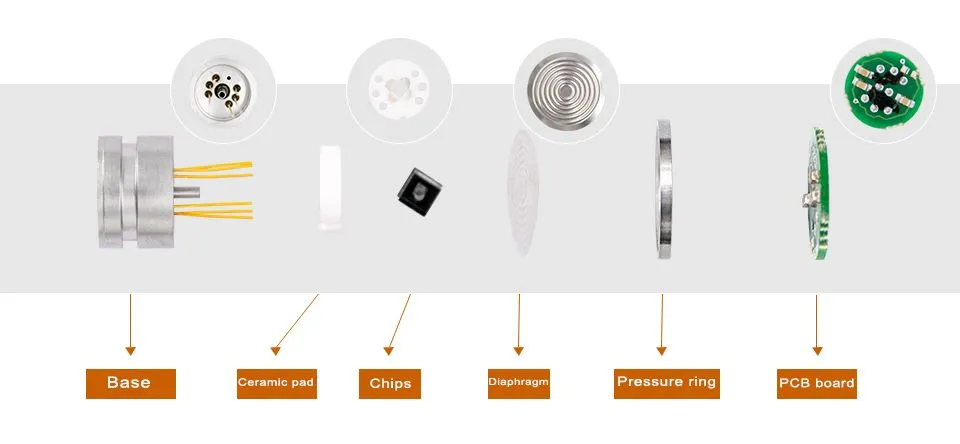

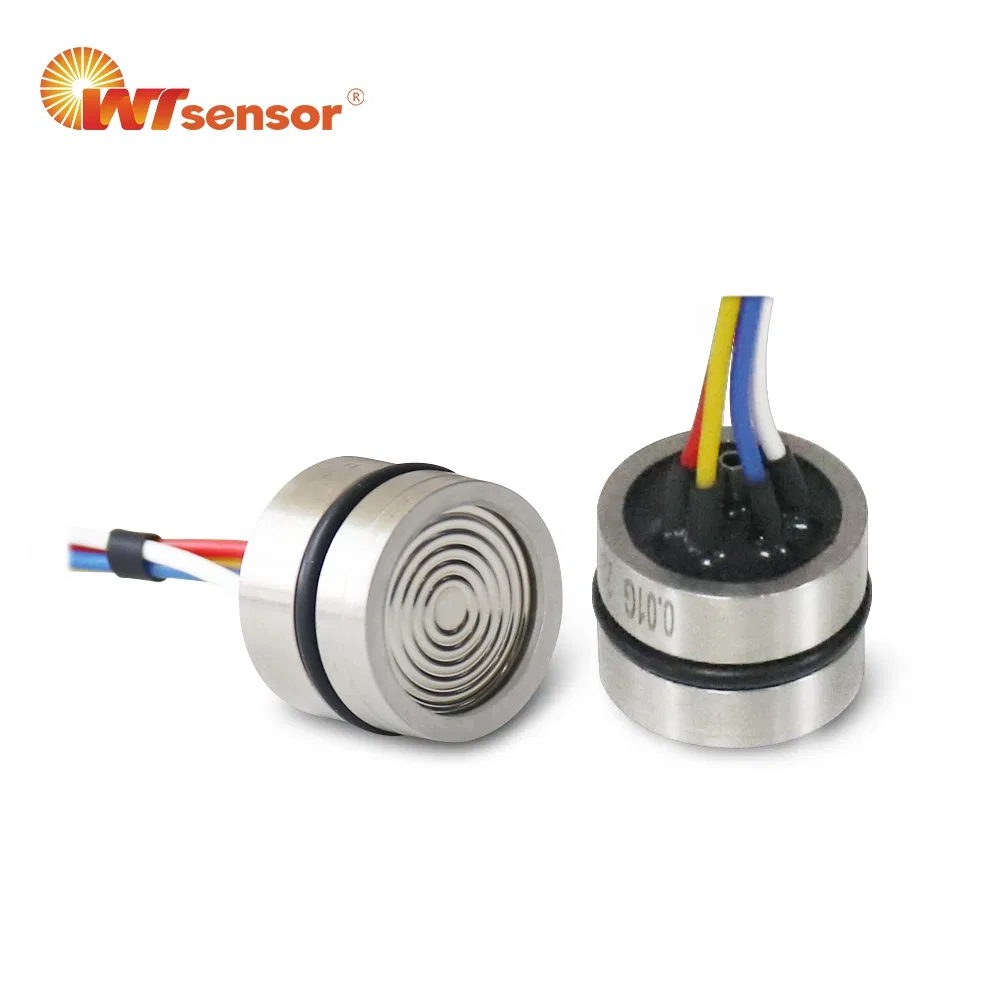

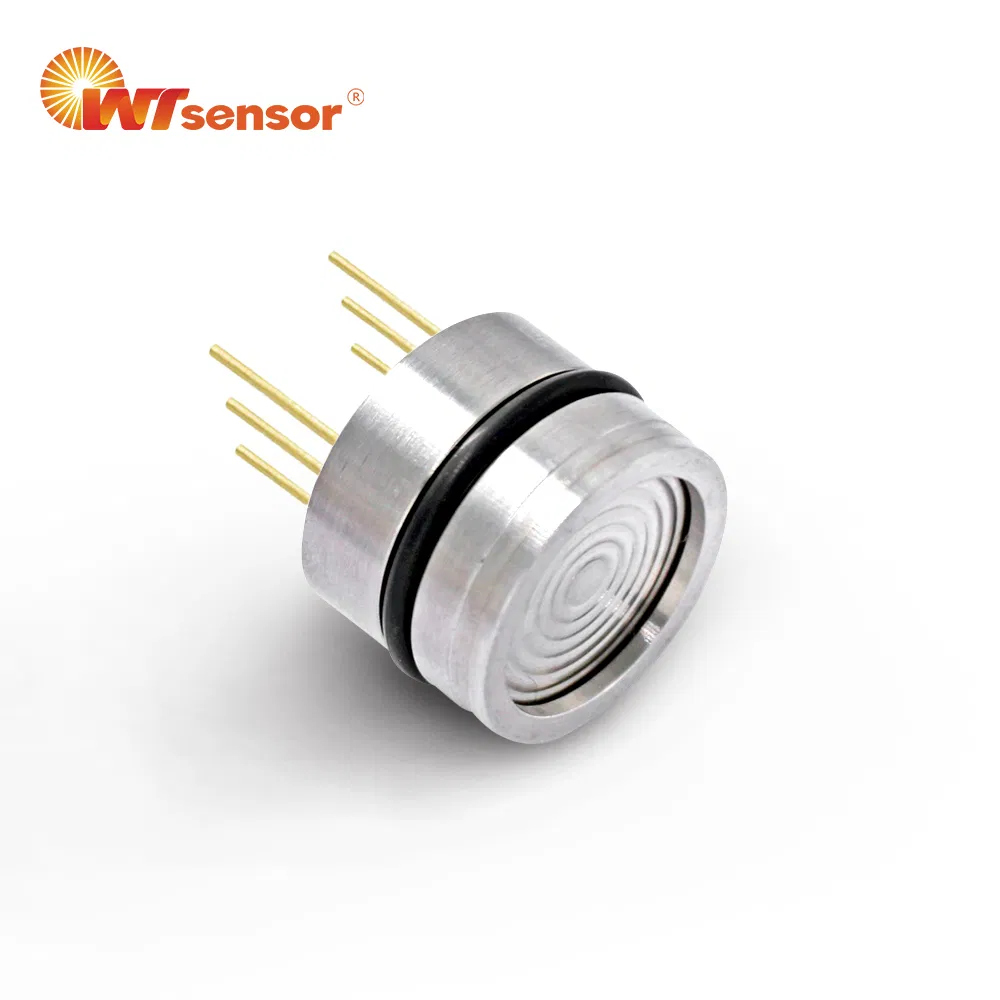

PC10 Piezoresistive Silicon Pressure Sensor is a high-performance component designed for manufacturing pressure sensors and transmitters. It packages a diffused silicon pressure-sensitive die into a 316L stainless steel housing, ensuring reliability even in harsh corrosive environments.

⚙️Features

Constant current and constant voltage excitation options
Imported highly reliable pressure die
Wide temperature compensation
Φ19mm standard OEM size
All 316L material construction
18 months warranty period

🚀Applications

Process control systems
Pressure calibration instruments
Hydraulic systems and valves
Level measurement
Refrigeration and HVAC control
Aviation and navigation systems

Product Parameters

Electrical Performance Parameters
Pressure Range	-100kPa~0~10kPa…100MPa
Pressure Reference	Gauge, Absolute, Sealed gauge
Excitation	1.5mA (current) / 10V (voltage)
Input Impedance	2kΩ~5kΩ (current) / 3kΩ~18kΩ (voltage)

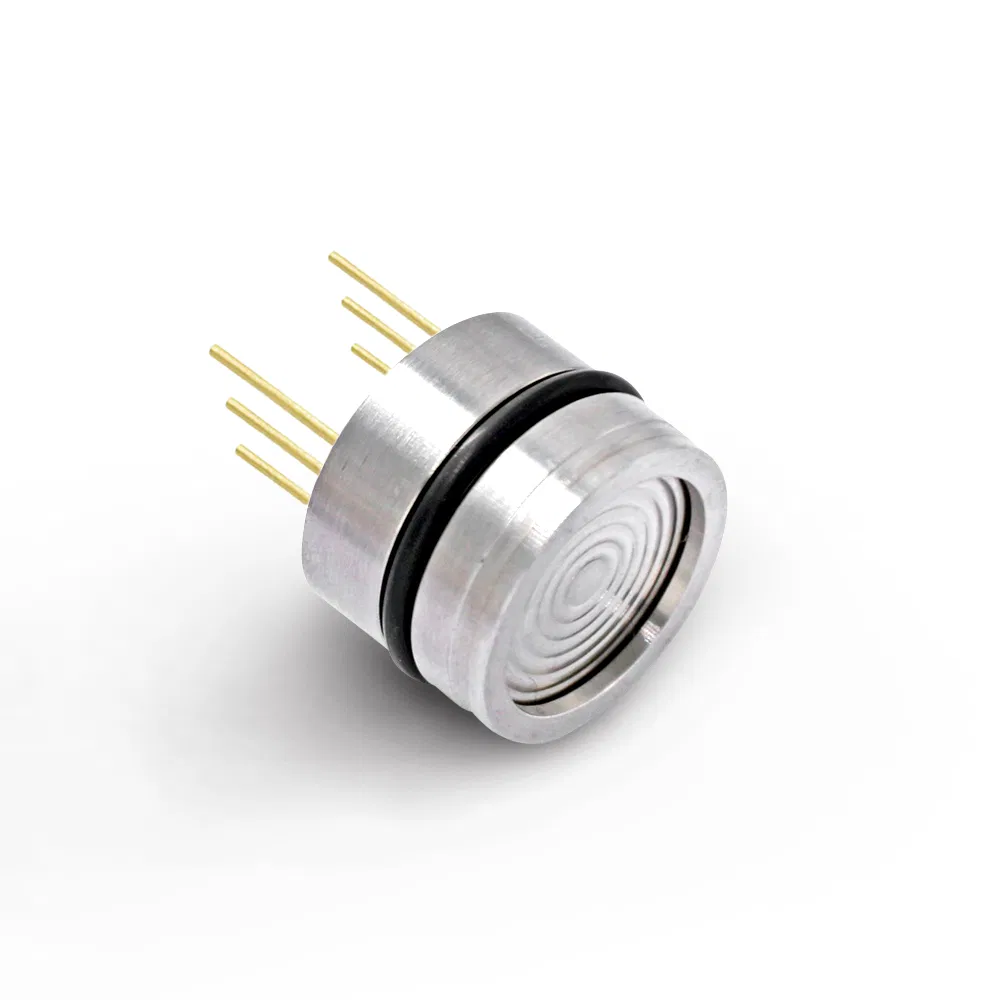

Electrical Connection	Gold-plated KOVAR pin or silicon soft wire
Operating Temp.	-40℃ ~ 125℃
Insulation Resistance	≥200MΩ/250VDC
Diaphragm Material	316L
Oil Filling	Silicon oil

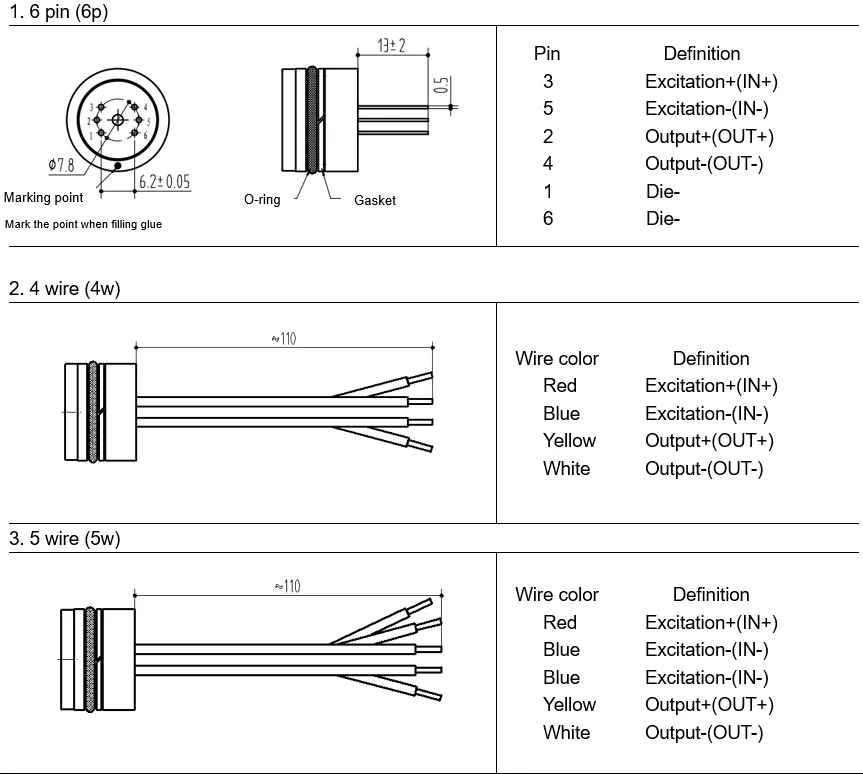

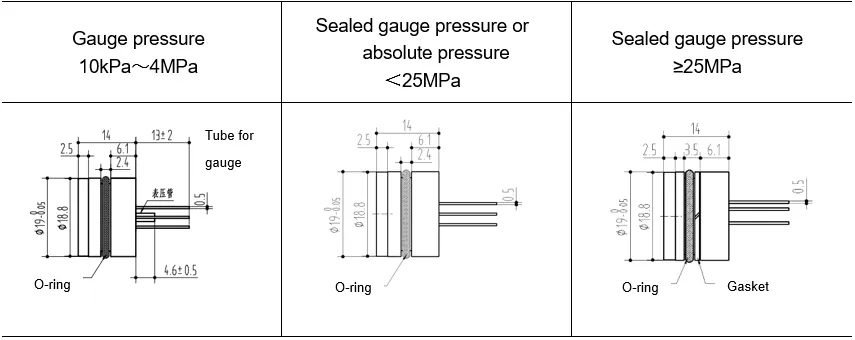

Structure & Dimensions

Visual Gallery

Frequently Asked Questions

Q1: Are you a manufacturer or a trading company? A: We are a professional manufacturer focusing on pressure sensors for over 20 years.

Q2: What certifications do your products hold? A: Our products are certified by ISO9001, European standard ATEX, TUV-CE, and RoHS.

Q3: Can I request samples before a bulk order? A: Yes, we maintain stock of materials to provide samples as quickly as possible.

Q4: What is the typical lead time for orders? A: For standard products without customization, the lead time is typically 8 to 14 working days.

Q5: What is the warranty period for the PC10 sensor? A: We provide an 18-month warranty period from the date of shipment.

Q6: Do you offer OEM and ODM services? A: Yes, we provide full OEM and ODM services, including laser marking of logos and product information according to your requirements.
