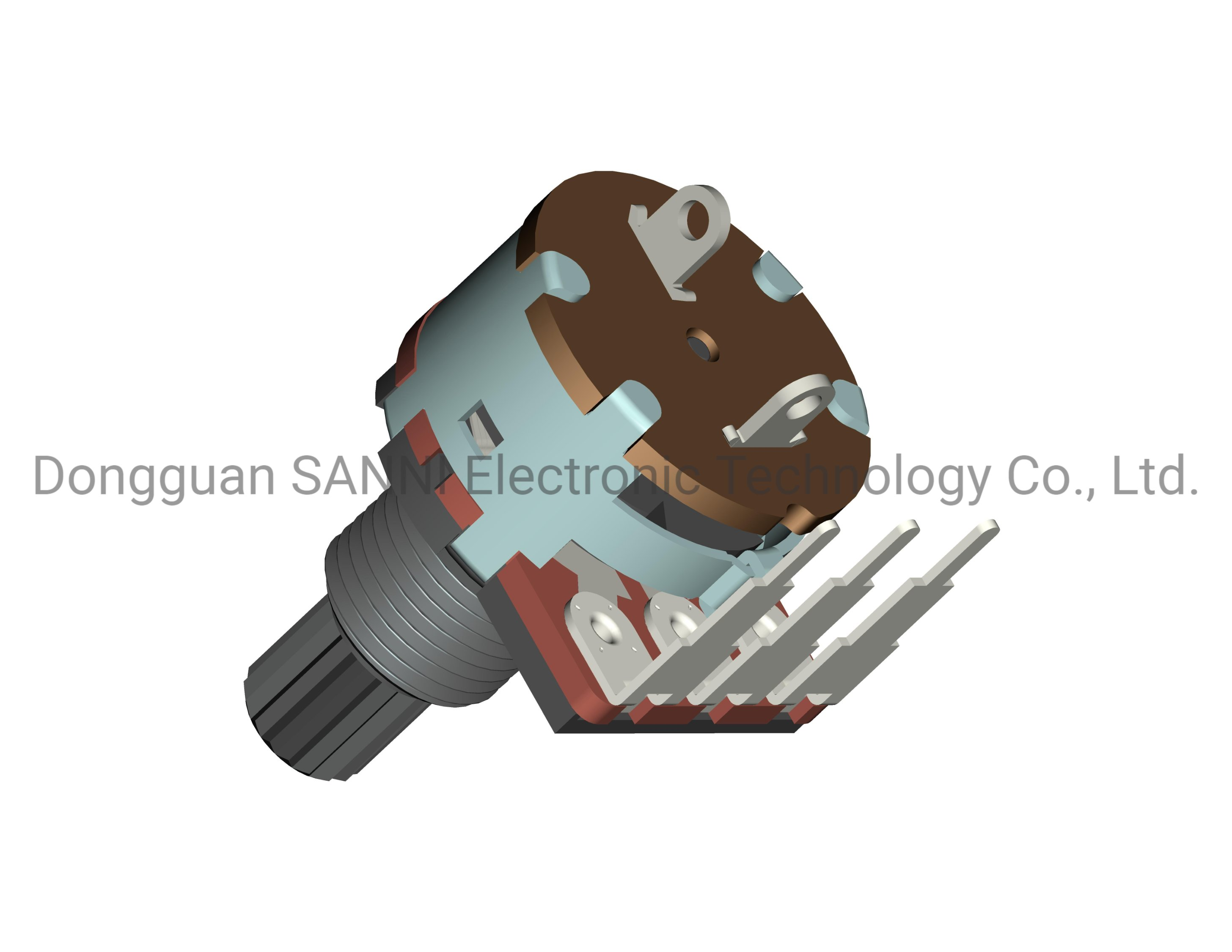

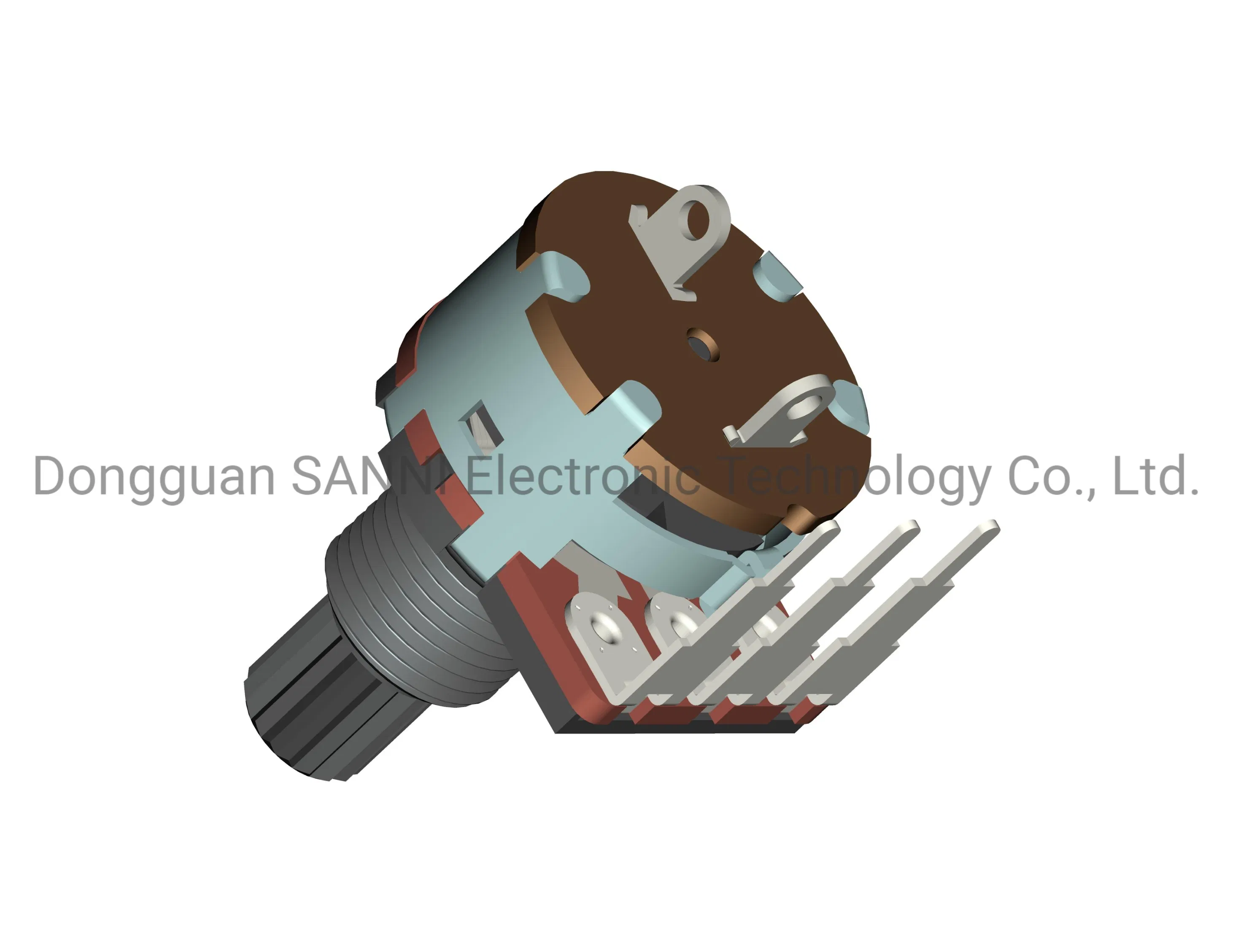

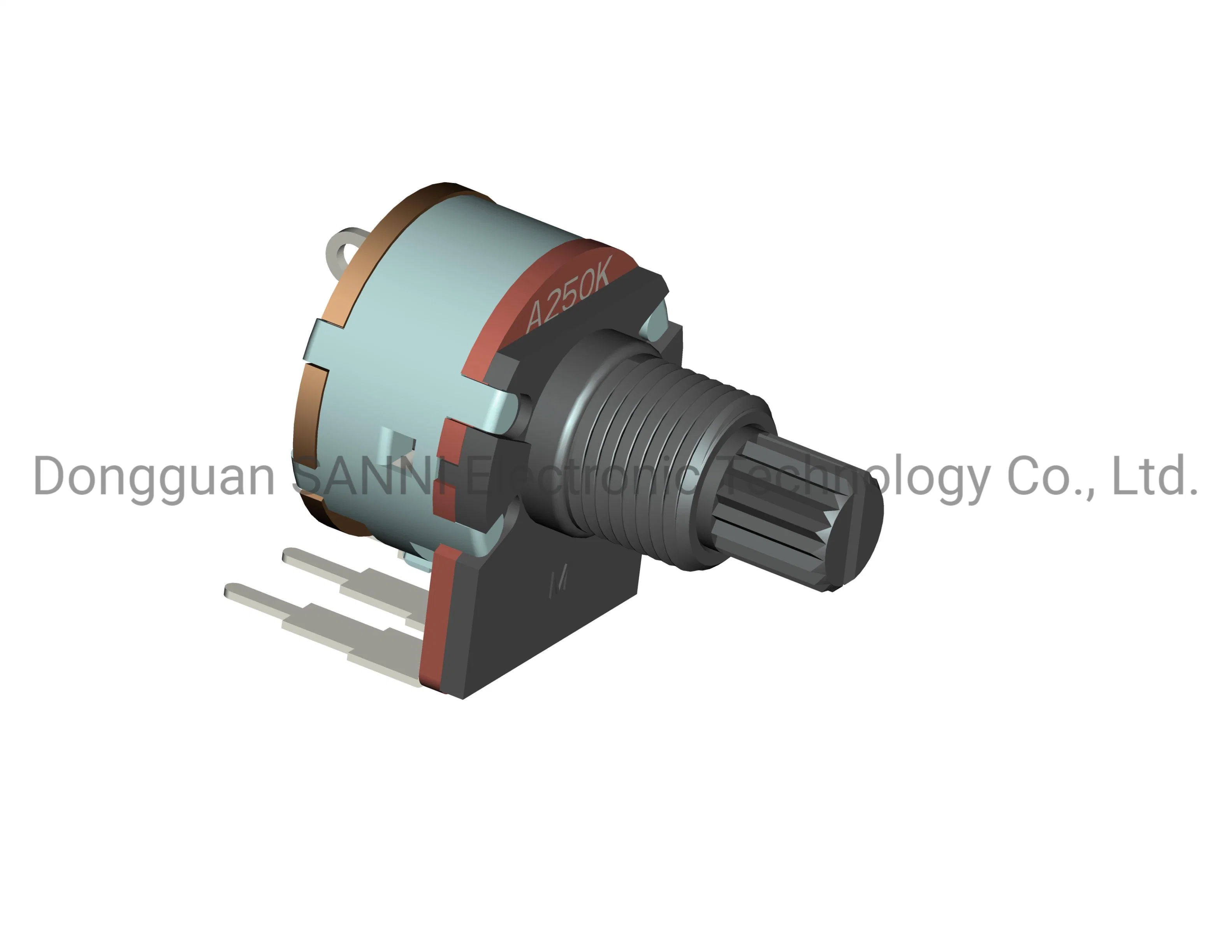

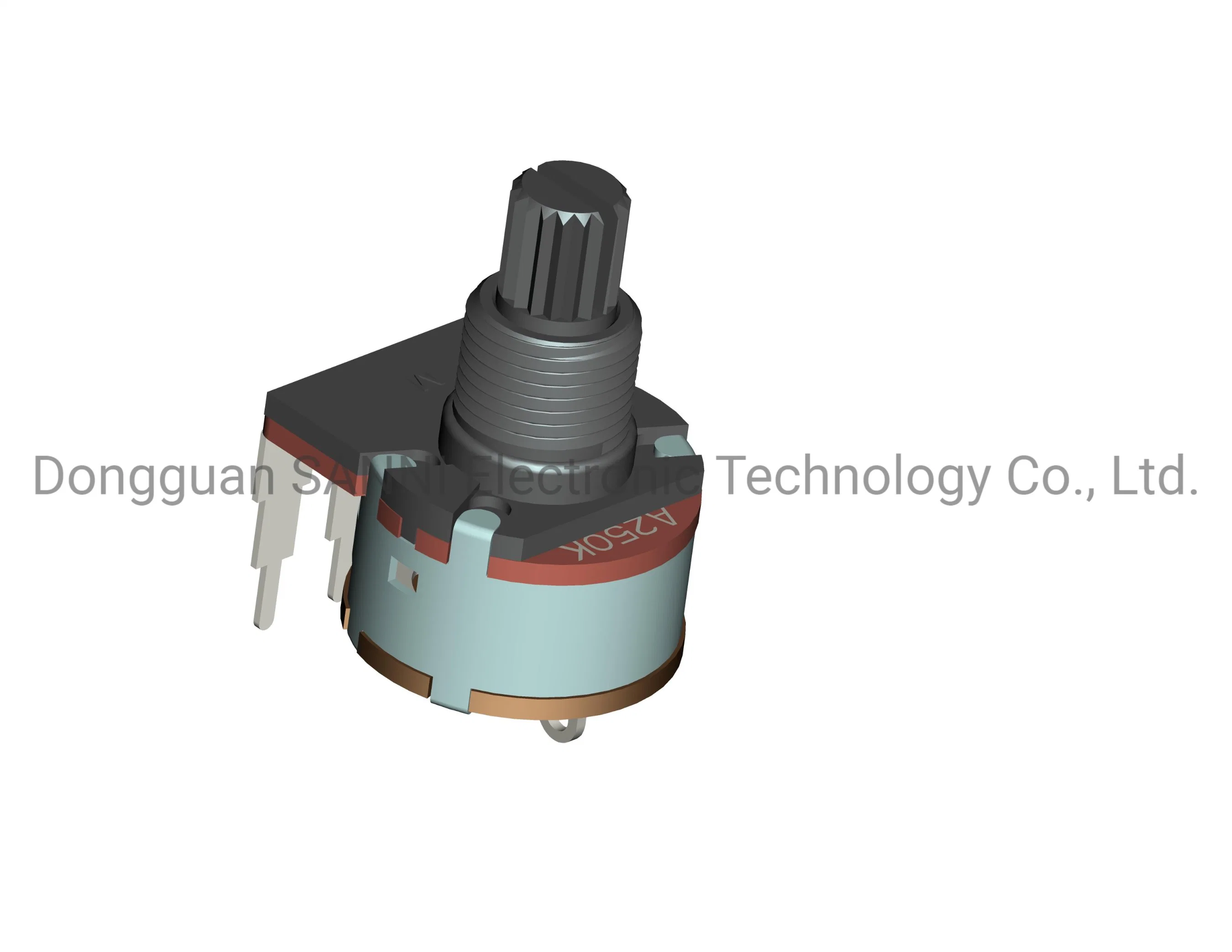

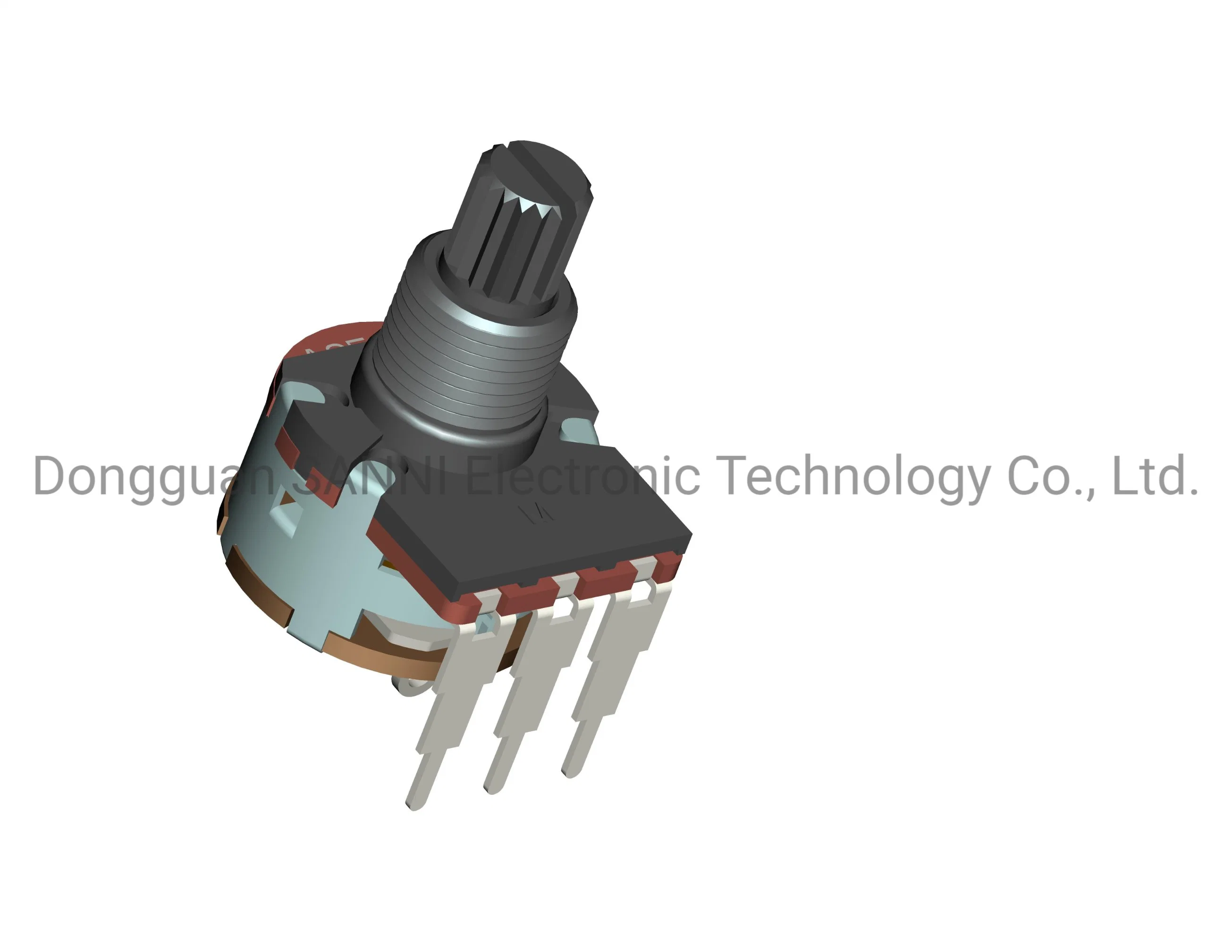

- Width 16mm, the choice of insulated plastic or metal shaft axis, can be tapped with the midpoint or, for a variety of amplifier adjustment
- For car audio, ordinary acoustics various AV machine, electrical, medical, lighting, CD, MD players and other AV equipment
- Specialty: optional insulated plastic or metal shaft axis can be positioned or tapped with a midpoint
Switch Performance
- Circuit type: SPST
- Rated Power: 1A 12V DC
- Switching torque: 50-150gf.cm
- Switching angle: 50°±5°
- Operating life without load: 100,000 cycles 100mΩ max
- Operating life with load: as rating 100,000 cycles 200mΩ max
- Initial contact resistance: 100mΩ max
- Insulation resistance: 100mΩ max min. 250V DC
- Voltage proof: 300V AC for 1 minute
Mechanical Characteristics
- Total rotational angle: 300°±5°
- Rotational torque: 10-100gf.cm
- Rotational stopper strength: MIN: 3Kgf
- Key push-pull strength: MIN: 8kgf
- Shaft wobble: 0.6*L/20mm p-p max
Electrical Characteristics
- Total resistance: 102-105 (10KΩ-1MΩ)
- Total resistance tolerance: 10KΩ-100KΩ: ±20%; other: ±30%
- Residual resistance: R≤100KΩ 20Ω max; 50KΩ≤R Nominal total resistance of 3% or less
- Ratings power: 0.025W
- Maximum operating voltage: 50V AC, 10V DC
- Slider noise: 100mV (<100mV)
- Insulation resistance: 100MΩ min. 250V DC
- Voltage proof: 1 minute at 250V AC
- Rotational lifespan: 10,000 cycles min
