160A 650V Trenchstop Insulated Gate Bipolar Transistor Dgcp160h65L2 to-247plus

1 / 5

160A 650V Trenchstop Insulated Gate Bipolar Transistor Dgcp160h65L2 to-247plus

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

DGCP160H65L2

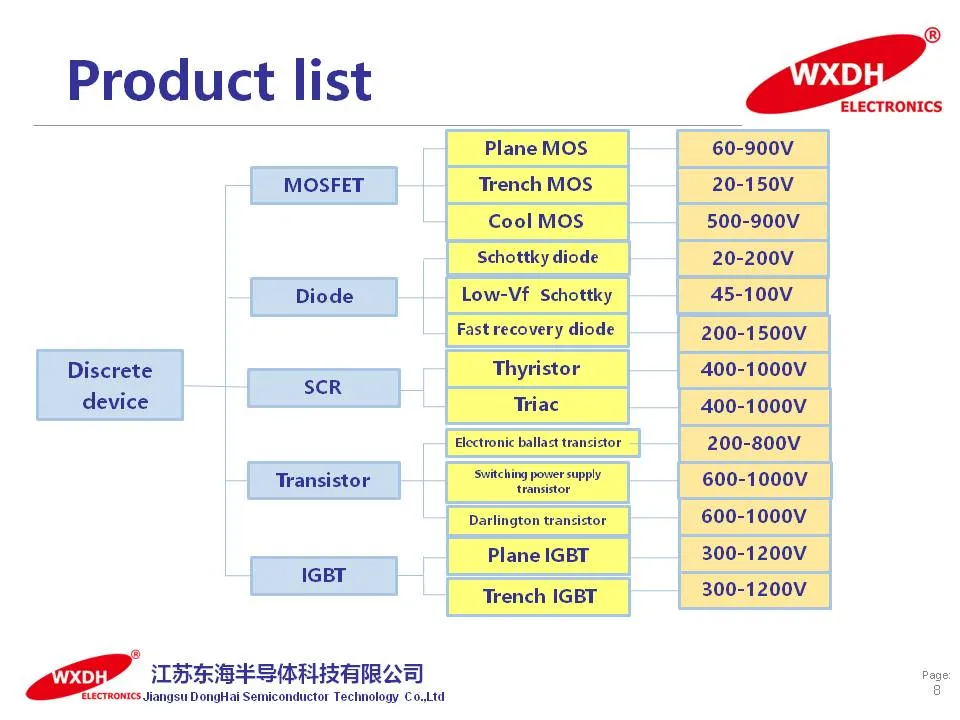

Technology

Discrete Device

Material

Silicon

Package

TO-247

Type

N-Type Semiconductor

Voltage

650V

Current

160A

HS Code

8541290000

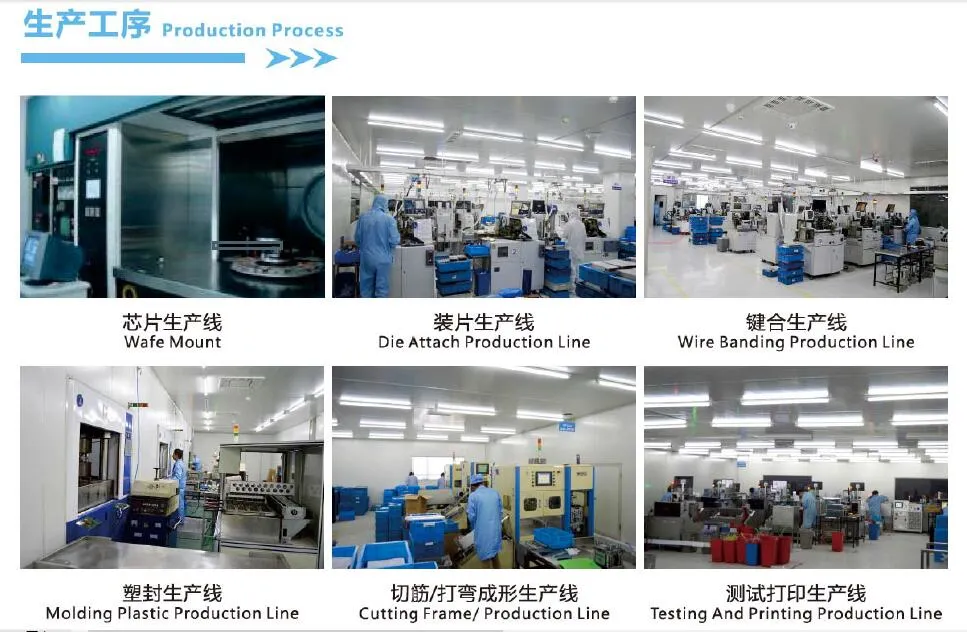

Production Capacity

500,000,000 Pieces/Year

Product Description

PARAMETER		SYMBOL	RATING	UNIT
Collector-Emitter Voltage		VCES	650	V
Gate- Emitter Voltage		VGES	±30	V
Collector Current (T=25ºC)		IC	240	A
Collector Current (Tc=100ºC)		IC	160	A
Pulsed Collector Current		ICM	480	A
Diode Continuous Forward Current (@TC=100°C)		IF	80	A
Total Dissipation	TC=25ºC	Ptot	882	W
Total Dissipation	TC=100ºC	Ptot	441	W
Junction Temperature		Tj	-45~175	ºC
Storage Temperature		Tstg	-45~150	ºC

Features & Applications

Key Features

FS Trench Technology, Positive temperature coefficient

Low saturation voltage: VCE(sat), typ = 1.9V @ IC = 30A and Tj = 25°C

Low switching losses due to FS and SiC technology combination

Extremely enhanced avalanche capability

Applications

Welding Equipment

Three-level Inverters

UPS (Uninterruptible Power Supplies)

Product Specifications & Packaging

Product Model	Package Type	Mark Name	RoHS	Package	Quantity
DGCP160H65L2	TO-247	DGCP160H65L2	Pb-free	PIPE	1000/box

Package Size

50.00cm * 20.00cm * 30.00cm

Gross Weight

15.000kg

Frequently Asked Questions

1. What are the primary voltage and current ratings for DGCP160H65L2? The DGCP160H65L2 is rated for a Collector-Emitter voltage of 650V and a continuous collector current of 160A at 100ºC (up to 240A at 25ºC).

2. What packaging type is used for this discrete device? This model uses the standard TO-247 package, which is ideal for high-power semiconductor devices due to its thermal efficiency.

3. What is FS Trench Technology mentioned in the features? Field Stop (FS) Trench technology provides a lower saturation voltage and reduced switching losses, making the device highly efficient for high-frequency switching applications.

4. Is the DGCP160H65L2 compliant with environmental standards? Yes, the product is specified as Pb-free and RoHS compliant, ensuring it meets international environmental safety standards.

5. What are the typical applications for this IGBT? It is commonly used in industrial welding machines, Uninterruptible Power Supplies (UPS), and three-level inverters.

6. What is the operating temperature range for this device? The junction temperature range (Tj) is from -45ºC to 175ºC, allowing for stable operation in demanding thermal environments.
