Product Description

Basic Info.

Model NO.Wayon-WMB02DN10T1

Working FrequencyLow Frequency

StructurePlanar

EncapsulationPDFN5060-8L

MaterialSilicon

FeaturesExtremely Low Switching Loss

Capacity10000 Pieces/Day

Product Description

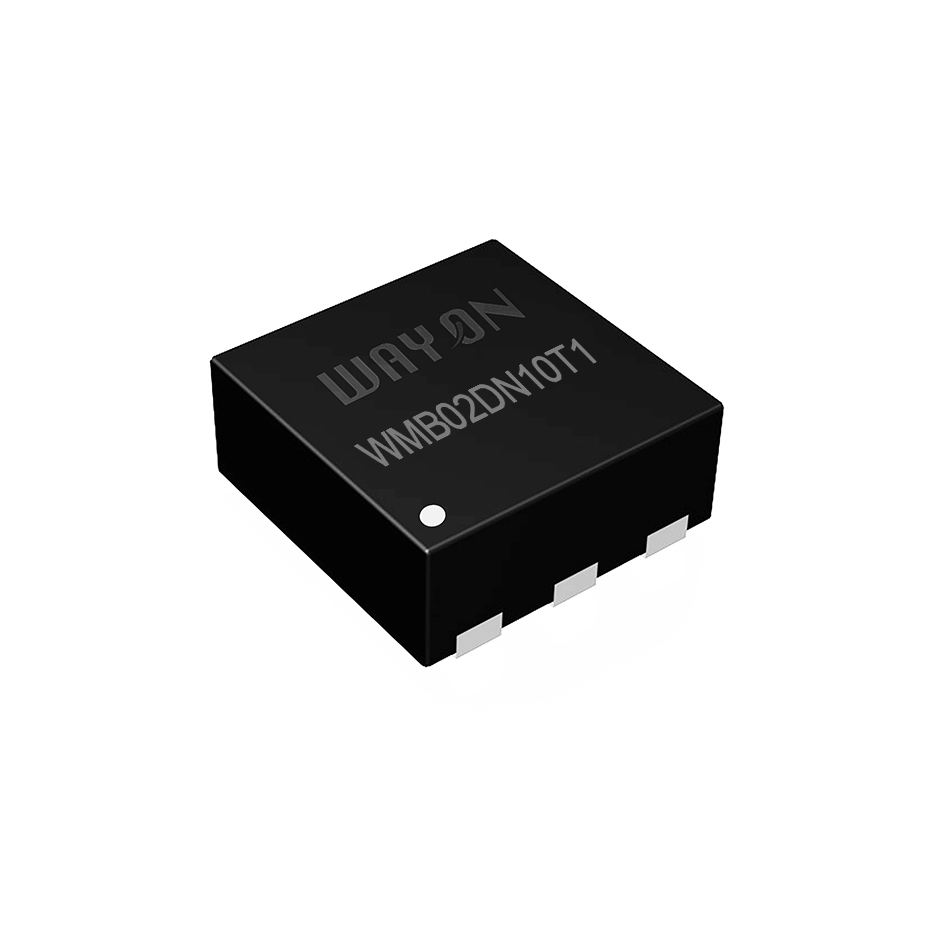

100V Dual N-Channel Enhancement Mode Power MOSFET

The WMB02DN10T1 utilizes advanced power trench technology specifically tailored to minimize on-state resistance while maintaining superior switching performance.

Key Features:

V_DS = 100V, I_D = -3.5A
R_DS(on) < 290mΩ @ V_GS = 10V
R_DS(on) < 310mΩ @ V_GS = 4.5V
Low RDS(on) and Low Gate Charge
100% EAS Guaranteed

Primary Applications:

Power Management Switches
DC/DC Converters
Switch Mode Power Supply (SMPS)
LED Lighting Power & Telecom

Technical Data

Package	PDFN5*6-8L
VDS(V)	100
Vgs Max(V)	±20
ID(A)@TA=25ºC(Max.)	2.5
VGS(th)(V)(Typ.)	1.5
Rds(on)(mΩ)@Vgs=10V(Max.)	290
Rds(on)(mΩ)@Vgs=4.5V(Max.)	310

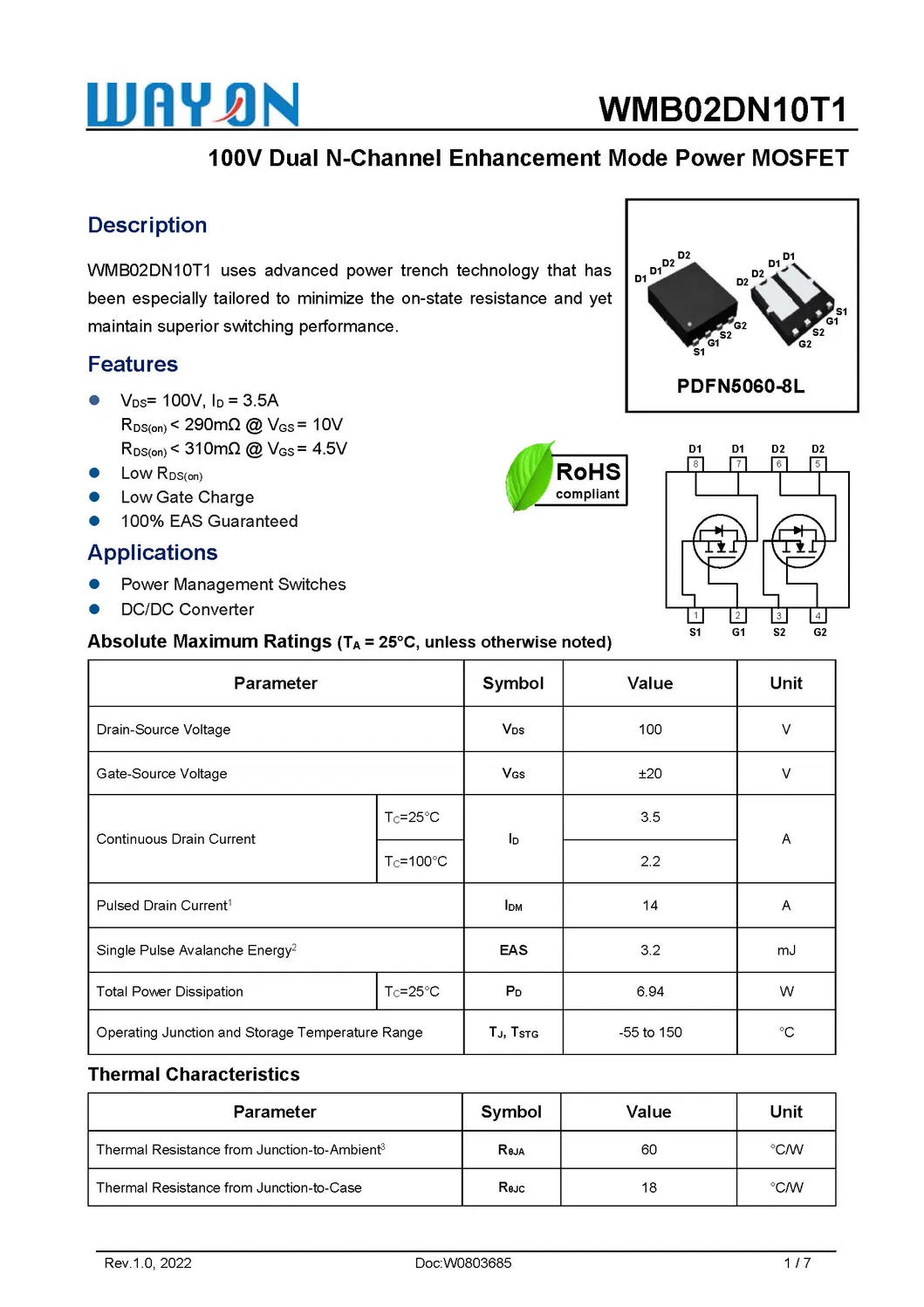

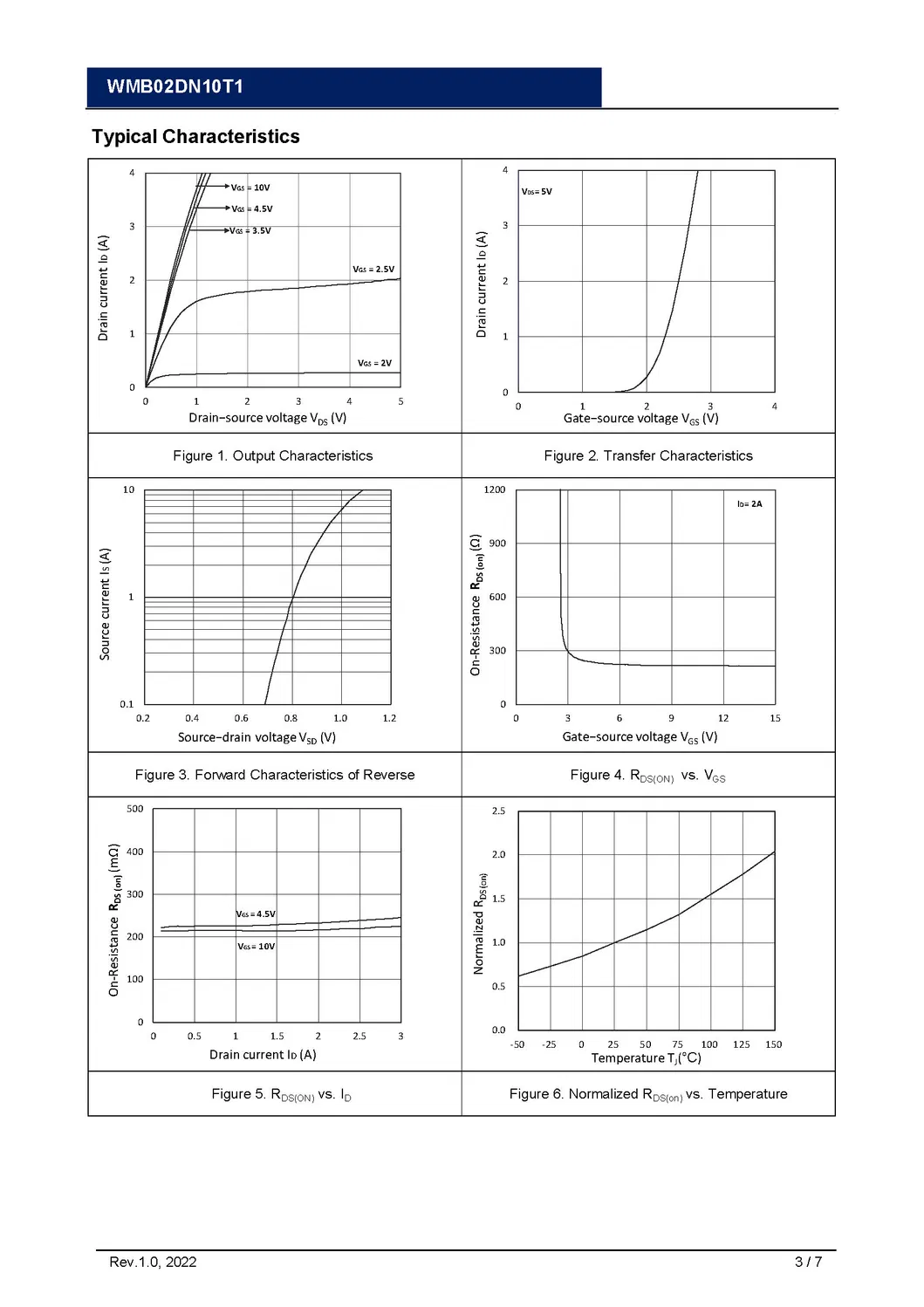

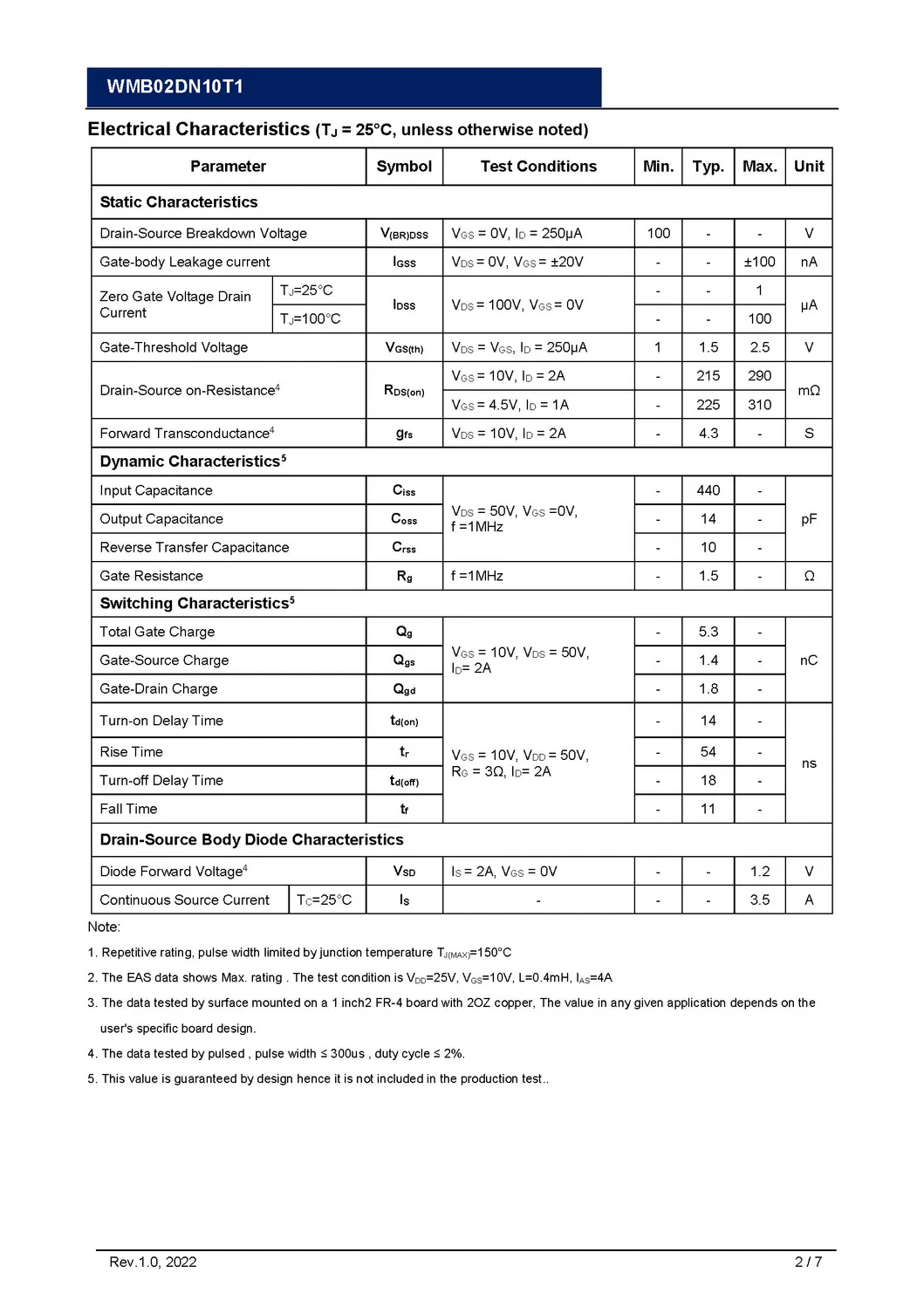

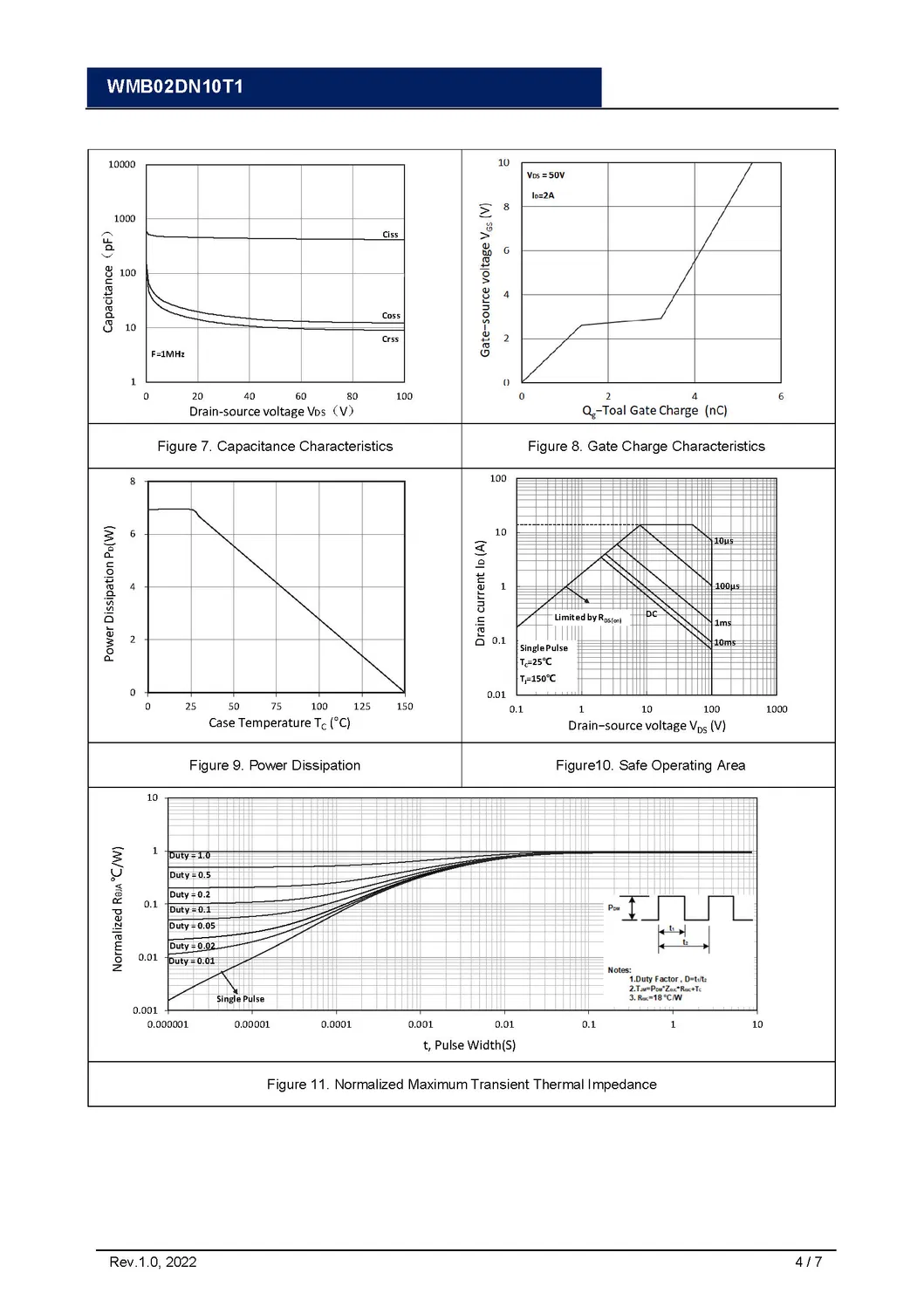

Datasheet & Technical Specifications

Manufacturing & Service

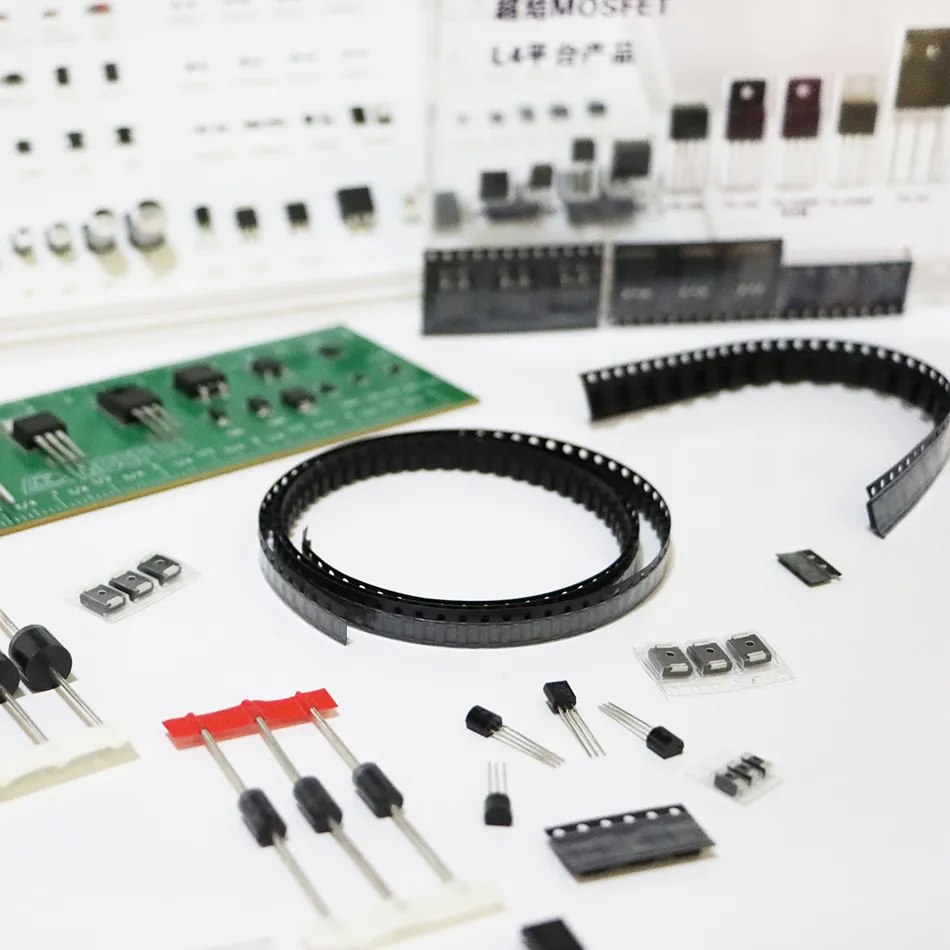

Our core product lines include:

Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;
Low voltage MOS; super junction MOS
SIC diode; SIC MOSFET

Certifications

FAQ

Q1: What services do you provide?

We provide turnkey solutions including RD, PCB fabrication, SMT, testing, and other value-added services.

Q2: What are the main industries for your components?

Our services mainly cater to industries including Medical, Automotive, Energy, Metering/Measurements, and Consumer Electronics.

Q3: Can quality be inspected during production?

Yes, we are transparent in each production process. We welcome customers to inspect our production process and check in-house.

Q4: How do you ensure information confidentiality?

We are willing to sign NDAs as per local laws to ensure all customer data is kept at a high confidential level.

Q5: What files are required for a quotation?

For PCB/PCBA quotes, please provide Gerber data/files and a Bill of Materials (BOM). Test instructions are required for function tests.

Q6: Do you have a minimum order quantity (MOQ)?

No, we do not have an MOQ requirement. We support projects ranging from prototypes to mass production.
