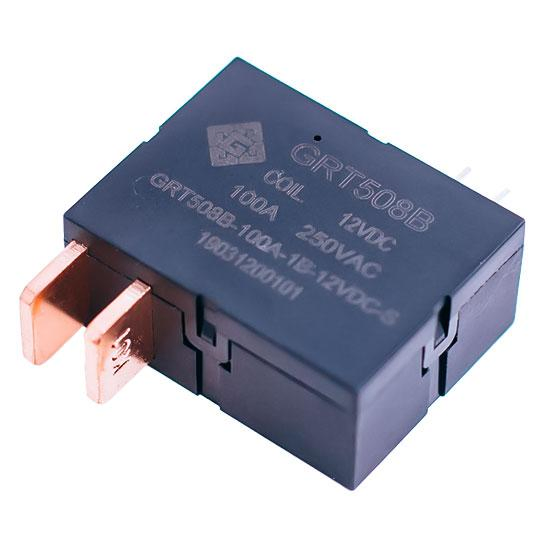

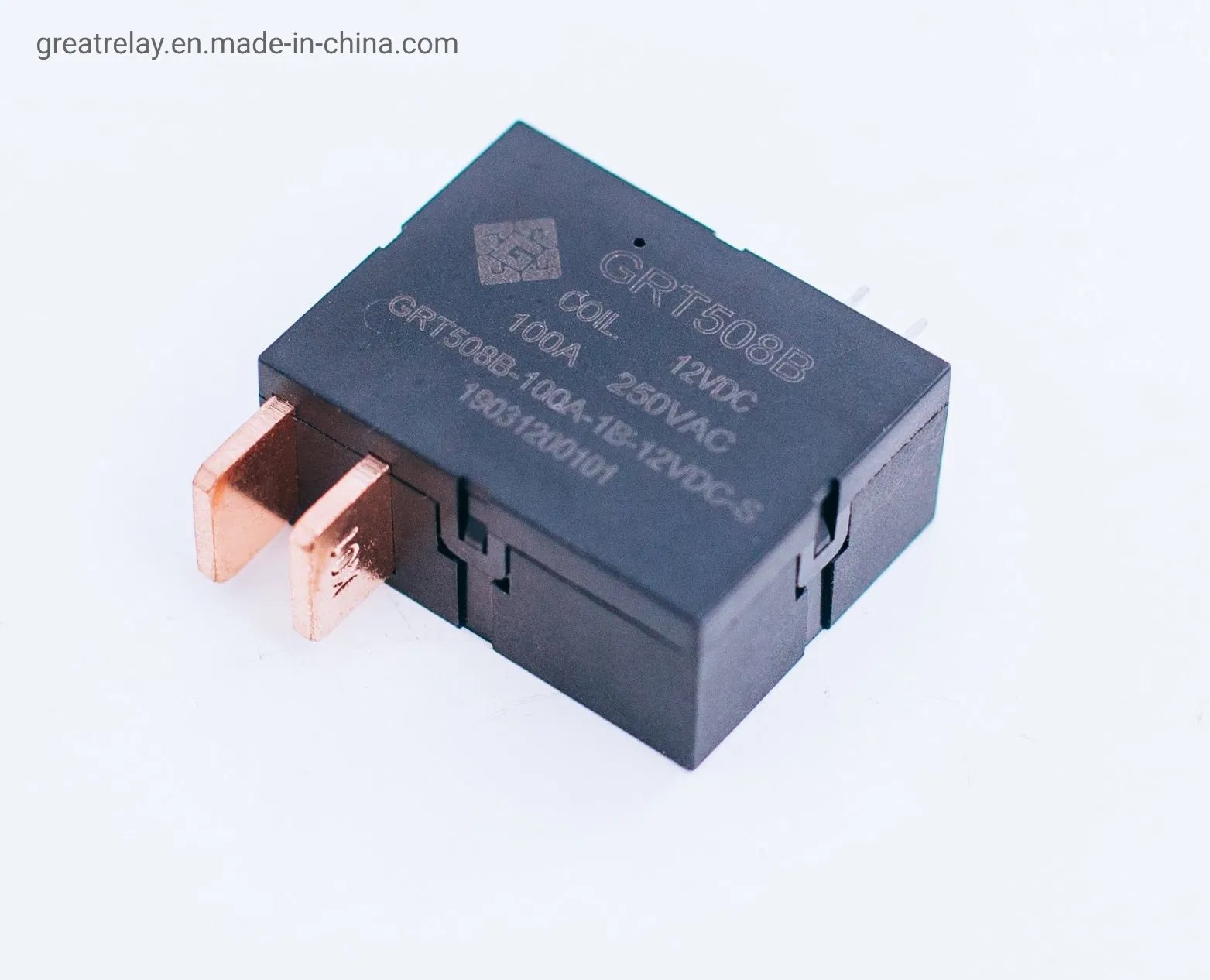

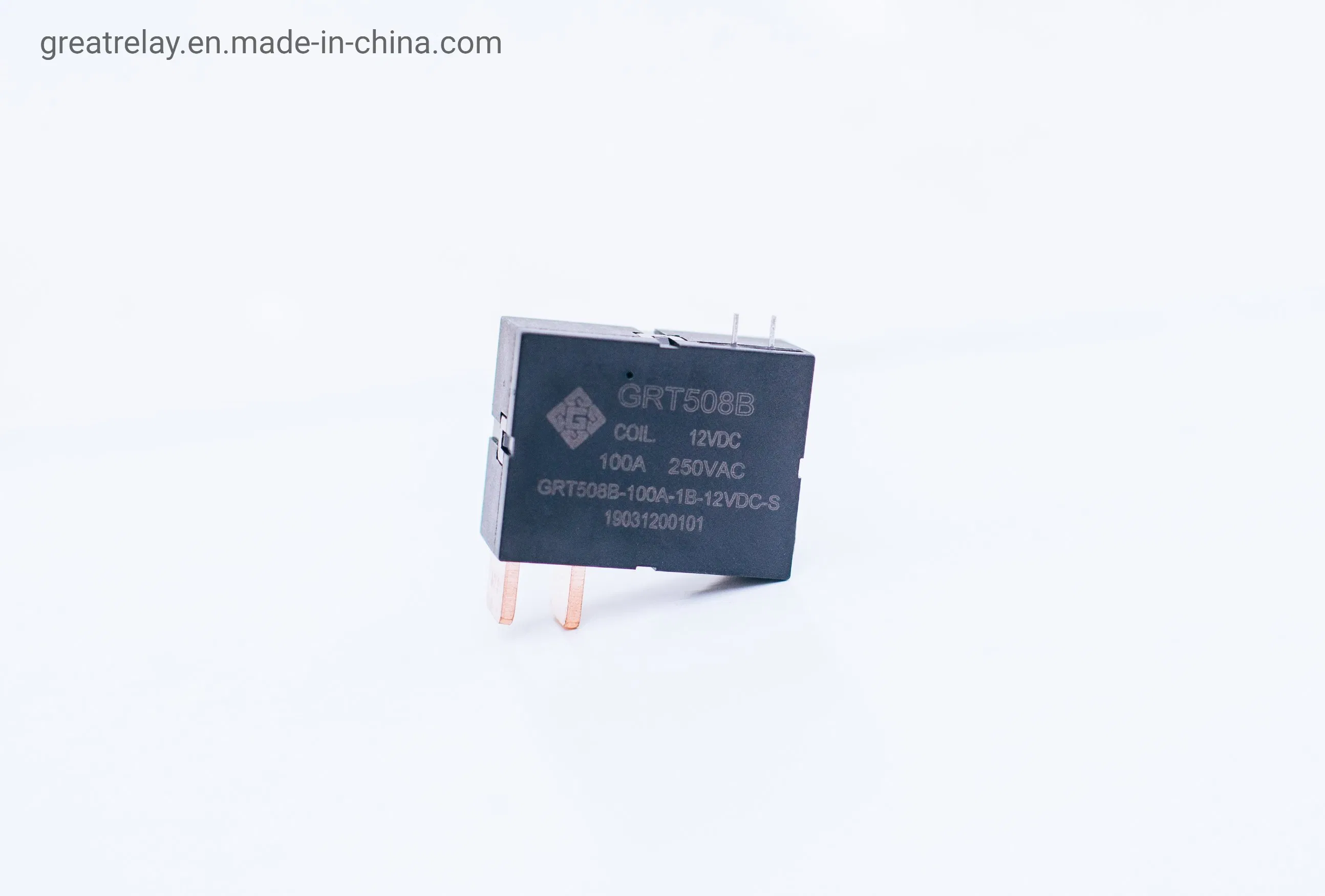

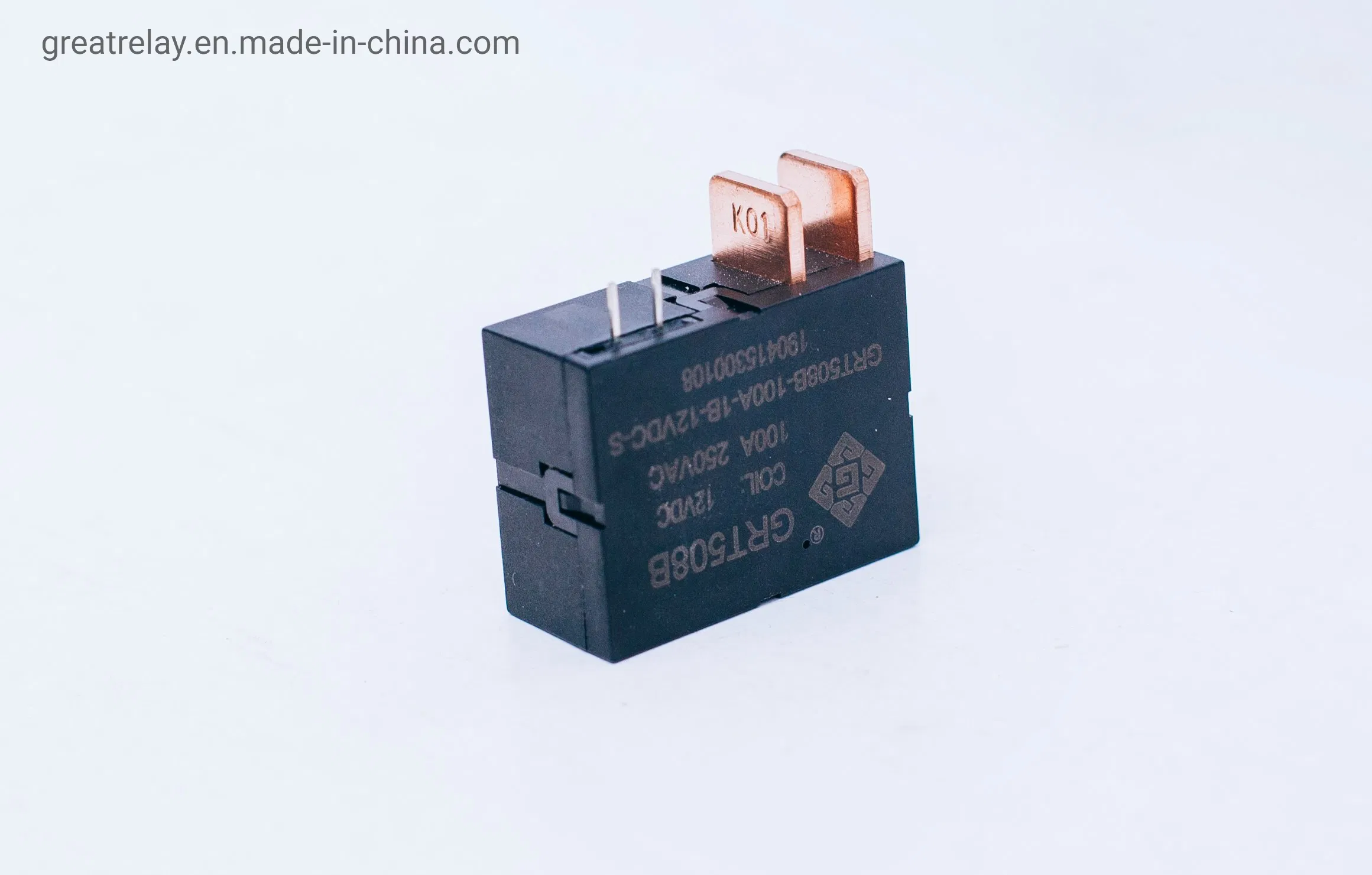

100A UC2 Compliant Single Phase Latching Relay for Energy Meter Applications in Smart Grid Solutions

Basic Information

Model NO.

GRT508B-100A

Phase

1

Electricity Type

Ac

Number of Pole

1

Load

High Power Relay

Protective Characteristics

Enclosed Relay

Action Principle

Electromagnetic Type

Size

Miniature

Type

Electric Parameter Relay

Contact Form

1b

Coil Voltage

6~24VDC

Switching Current

100A

Coil Type

Single Coil and Double Coil Optional

Production Capacity

40,000,000 PCS Per Year

Product Description

1-pole Latching Relay

100A contact switching capability
Only impulse excitation needed, both for single and double coil
Low power consumption, small in size
Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt
4KV dielectric strength between coil and contacts
RoHS compliant
IEC62055-31 UC2 compliant
Outline dimensions: (39 x 30 x 16.8) mm

Product Parameters

Contact Data

Contact Form	1B/1H
Contact Material	AgSnO2
Contact Resistance	Max. 1.0MΩ (1A 6VDC)
Rated Load (Resistive)	100A 250VAC
Max. Switching Voltage	250VAC
Max. Switching Current	100A
Max. Switching Power	25000VA
Mechanical Service Life	1x10⁵ OPS
Electrical Service Life	5x10³ OPS (100A 250VAC) / 1x10⁴ OPS (80A 250VAC)
Max. Short-circuit Current	2500A/10ms (4500A/10ms no explosion)

Characteristics

Operate Time	Max. 20ms	Release Time	Max. 20ms
Insulation Resistance	Min. 1000MΩ (500VDC)	Dielectric Strength (Coil/Contact)	4000VAC
Surge Voltage	10KVAC	Creepage Distance	8mm
Unit Weight	About 45g

Environment Data

Ambient Temperature	-40ºC~ 85ºC
Relative Humidity	5%~85%RH
Vibration	10~55Hz 1.5mm
Shock	98M/S² (functional) / 980M/S² (survival)

Technical Drawing & Terminal Type

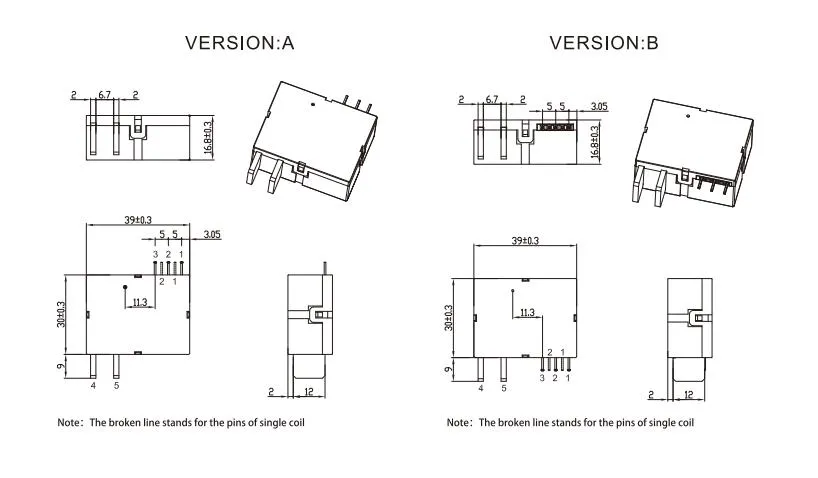

Dimensional Drawing

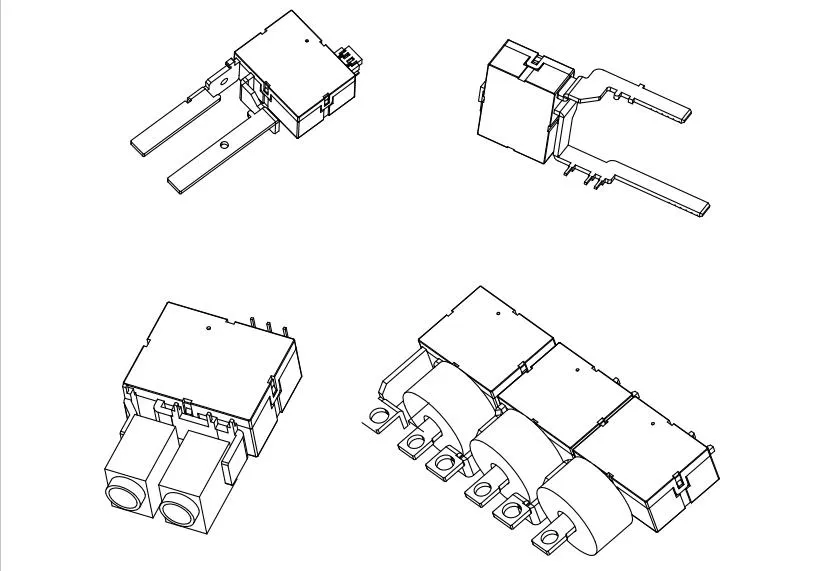

Typical Terminal Type
