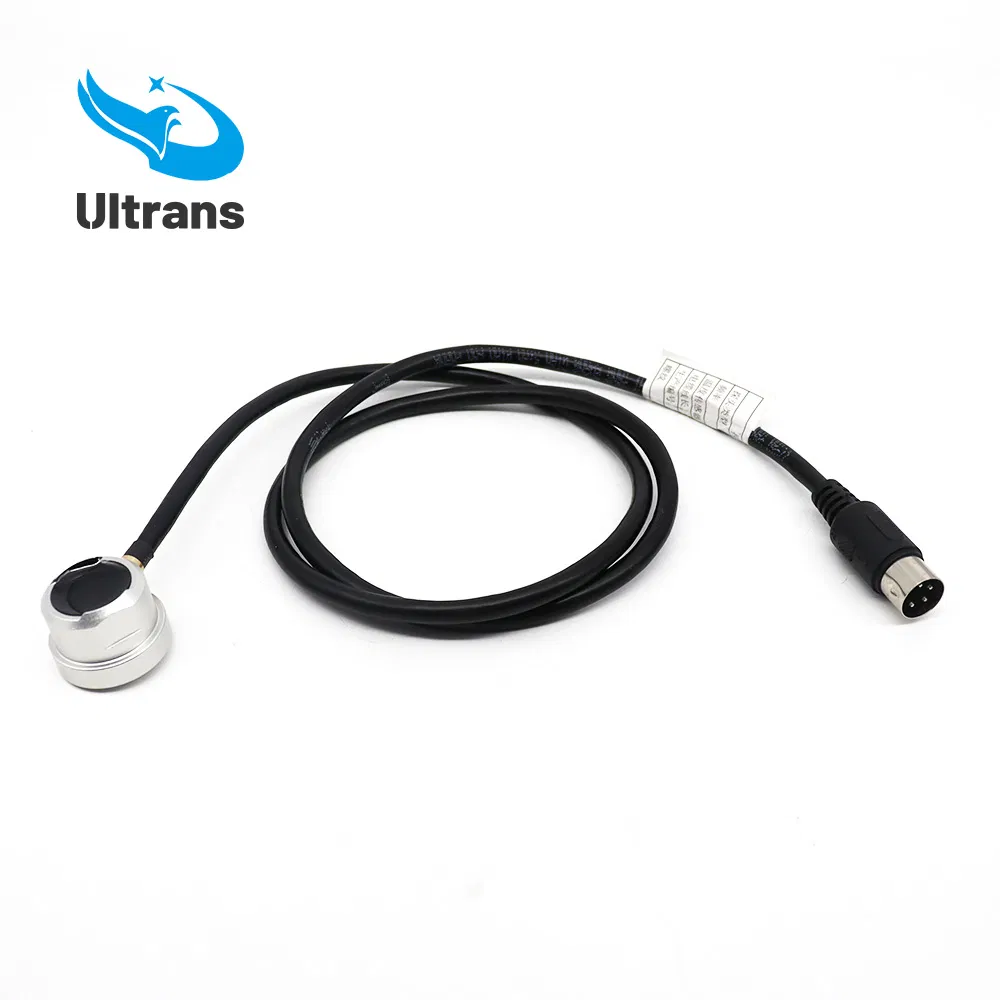

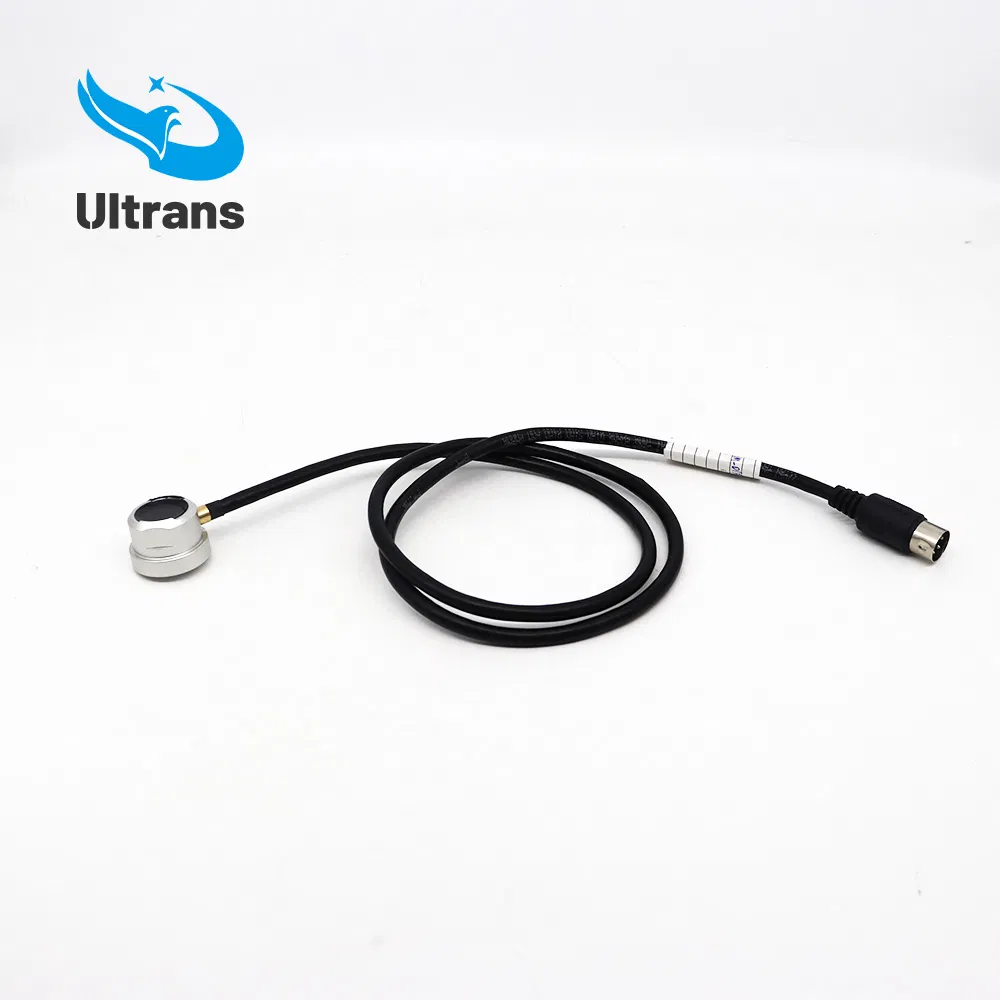

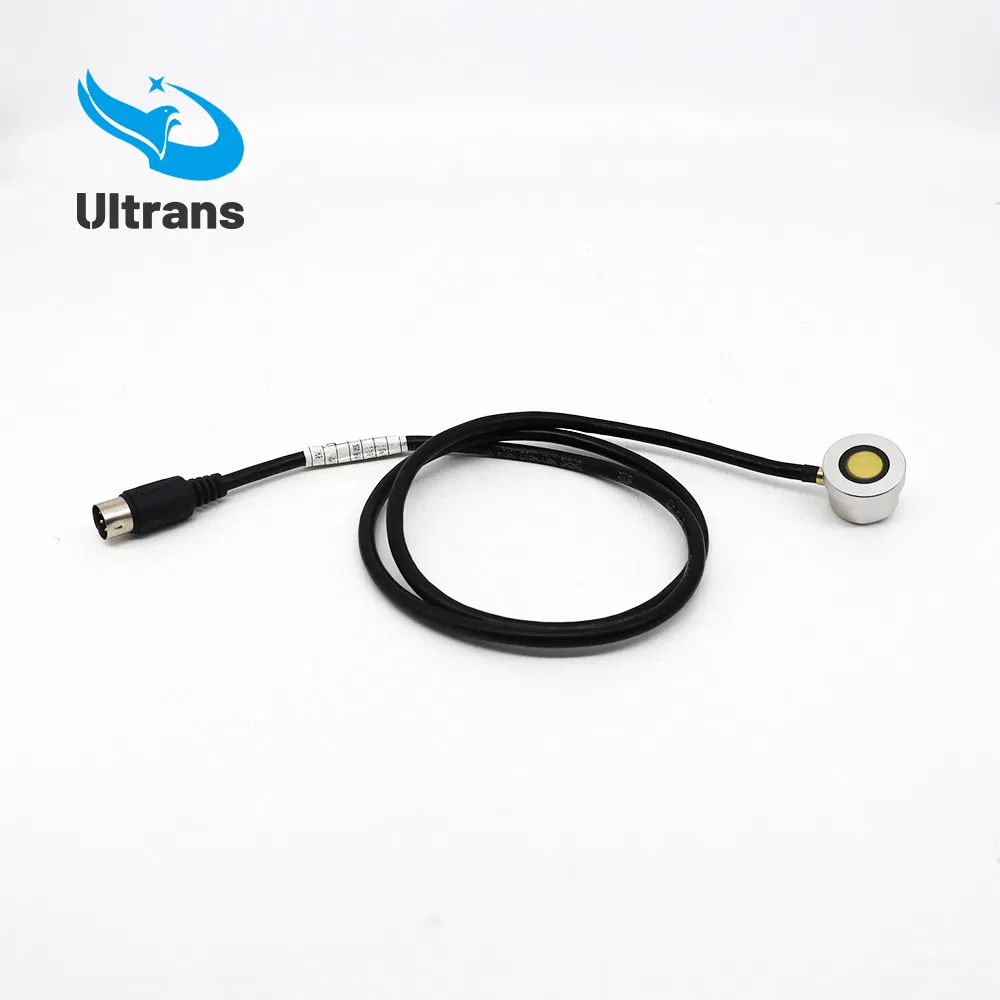

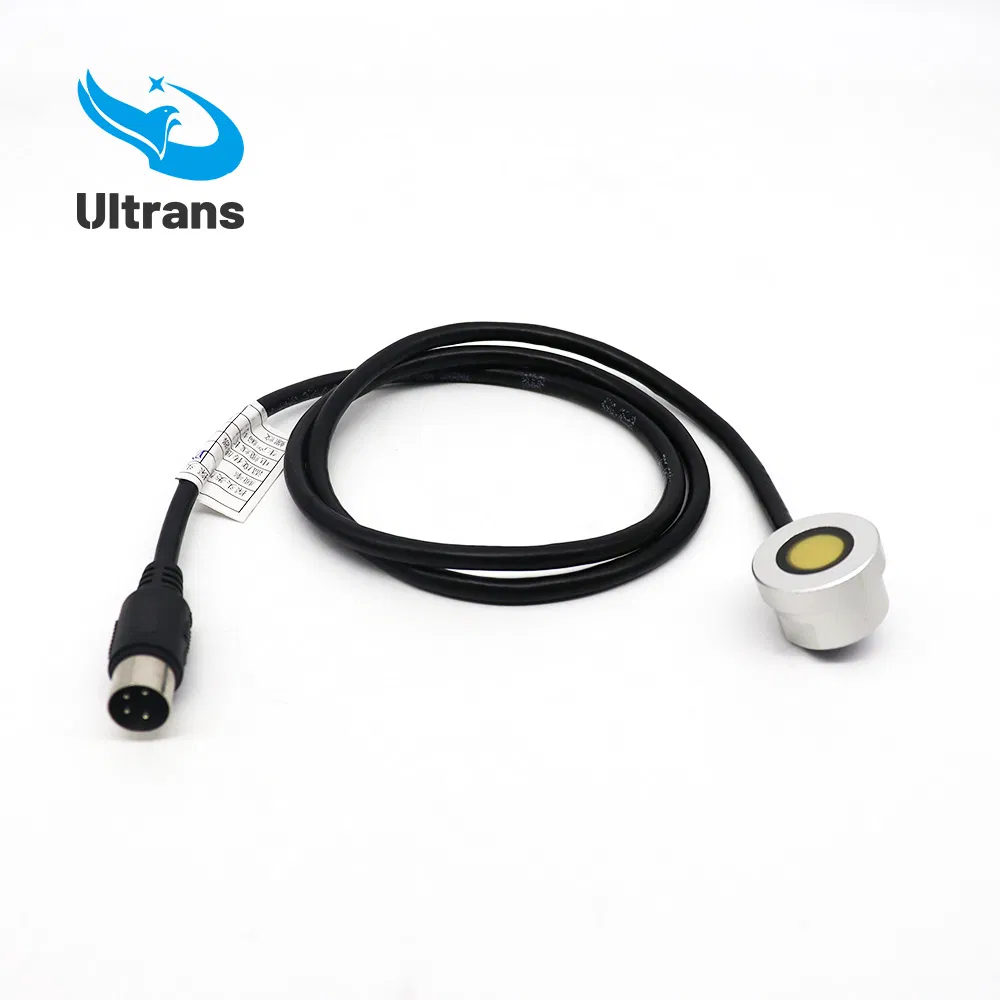

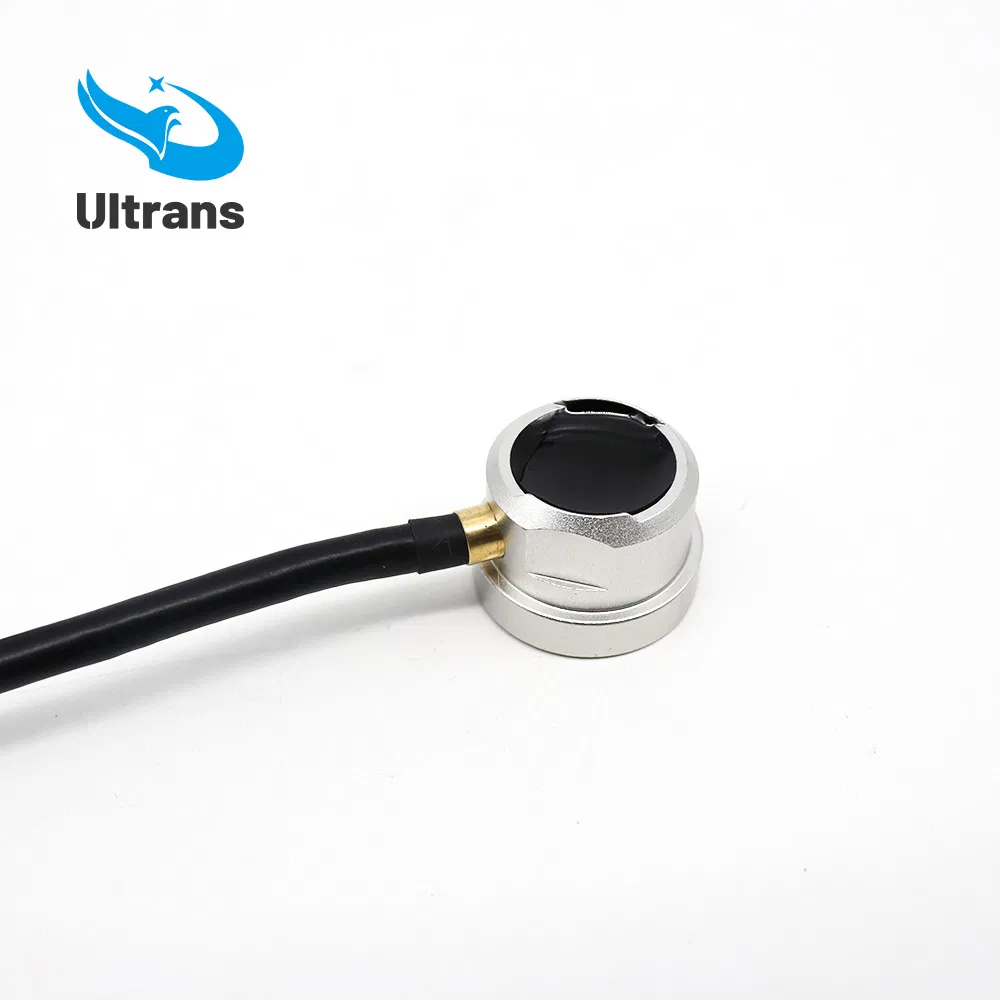

1 MHz External Fuel Tank Oil Level Detection Acoustic Ranging Ultrasonic Transducer Level Sensor
1 MHz External Fuel Tank Oil Level Detection Acoustic Ranging Ultrasonic Transducer Level Sensor
1 MHz External Fuel Tank Oil Level Detection Acoustic Ranging Ultrasonic Transducer Level Sensor
1 MHz External Fuel Tank Oil Level Detection Acoustic Ranging Ultrasonic Transducer Level Sensor
1 MHz External Fuel Tank Oil Level Detection Acoustic Ranging Ultrasonic Transducer Level Sensor
1 / 5
1 MHz External Fuel Tank Oil Level Detection Acoustic Ranging Ultrasonic Transducer Level Sensor
1 MHz External Fuel Tank Oil Level Detection Acoustic Ranging Ultrasonic Transducer Level Sensor
1 MHz External Fuel Tank Oil Level Detection Acoustic Ranging Ultrasonic Transducer Level Sensor
1 MHz External Fuel Tank Oil Level Detection Acoustic Ranging Ultrasonic Transducer Level Sensor
1 MHz External Fuel Tank Oil Level Detection Acoustic Ranging Ultrasonic Transducer Level Sensor

1 MHz External Fuel Tank Oil Level Detection Acoustic Ranging Ultrasonic Transducer Level Sensor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

🔹 Overview - Basic Information
Model NO.
FYW-1M-01FG
Production Process
Injection
Sensitivity
High
Probe Type
Surface Wave Probe
Measuring Medium
Liquid
Detection Mode
Direct Reflection Type
IP Rating
IP68
Certification
CE
Frequency
1 MHz
Range
0.03~2 M
Resistance
60 Omega
Capacitance
1500 PF
Echo
500 Mv
Voltage
<300 Vpp
Temperature
-40~80 Deg
Pressure
≤ 1 MPa
Material
2A12
Weight
240g
Origin
China
Capacity
30000PCS/Month
📊 Detailed Product Parameters
Center Frequency1 MHz, ±5%
Sensing Range0.03~2m
Minimum Parallel Resistance60 Ω, ±20%
Capacitance1500 pF, ±20% @1 kHz
Echo Sensitivity (FOM)@Driving Voltage: 24Vpp, Distance: 0.3m, Echo Amplitude: 500mV
Maximum Driving Voltage300Vpp (2% Duty Cycle Tone Burst)
Operating Temperature-40°C to 80°C
Pressure Support≤ 10 kgs or 1 MPa
Beamwidth (@ -3 dB)3.3°±10%, (@ -20 dB): 7.8°±10%
Housing Material2A12 Aluminum Alloy
Protection LevelIP68
Wiring Instruction4PIN (Terminal One +, One -, Two MF58 Temperature Sensing)
🏭 Manufacturing & Quality Control
R&D Department & Testing

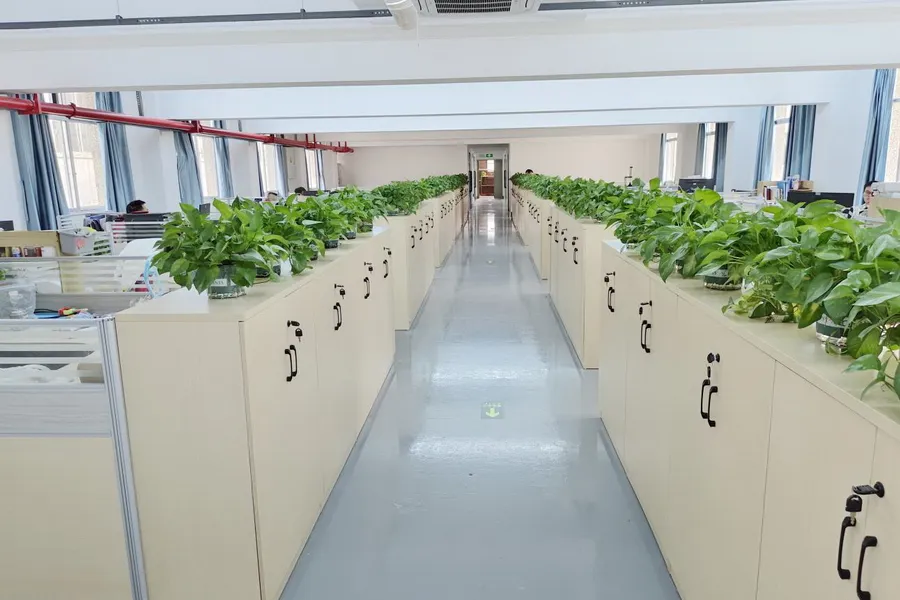

R&D Department

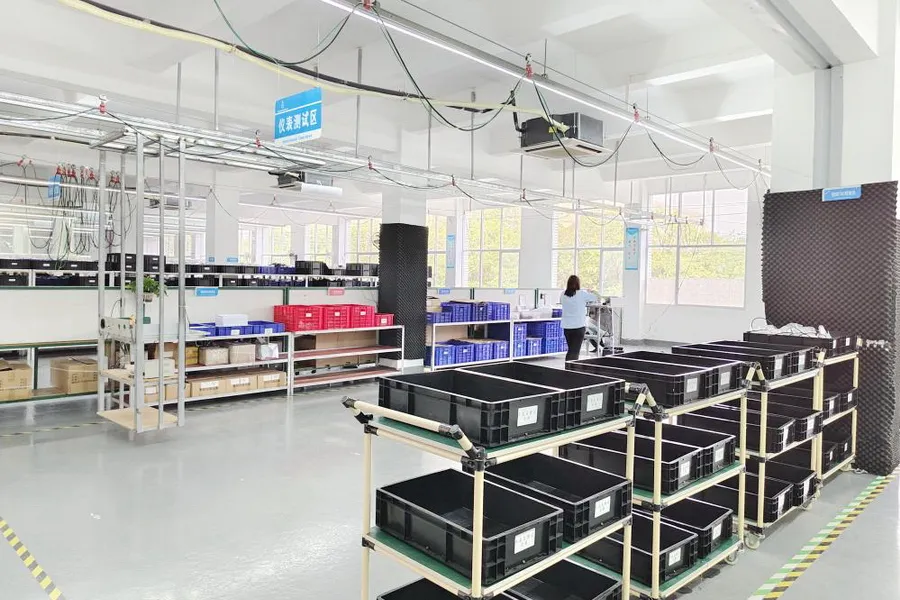

Testing Phase
Assembly & Aging Process

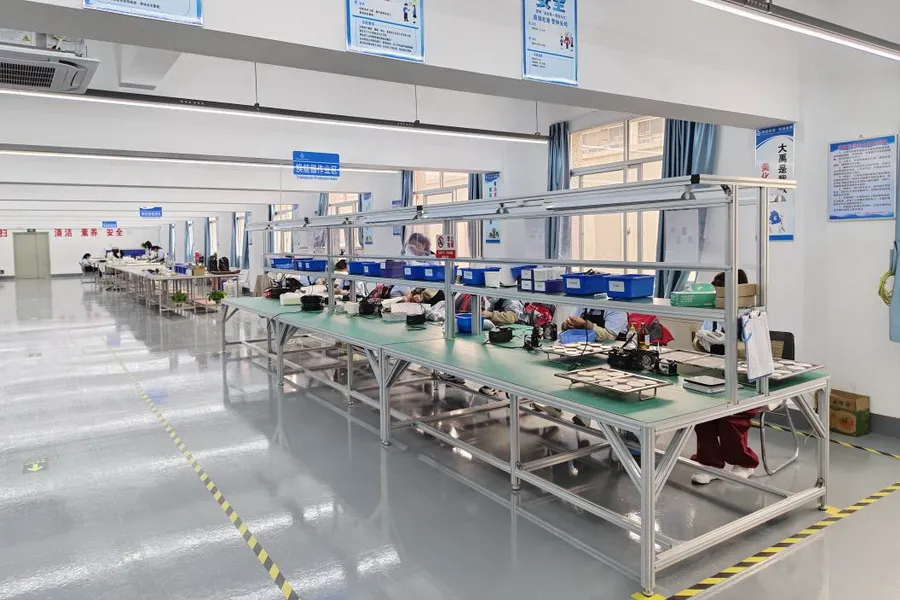

Assembling Line
Aging Test
Packing & Finished Products

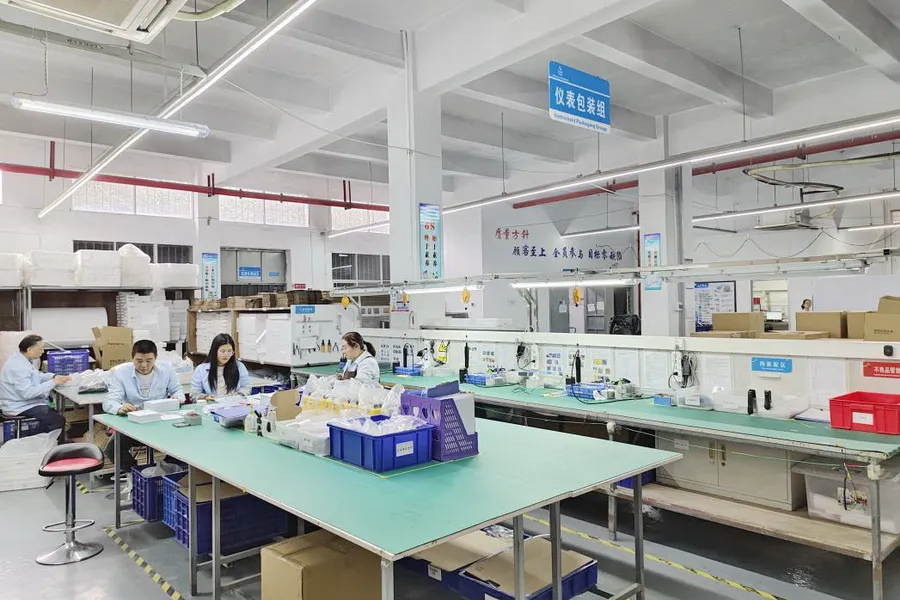

Packing Process

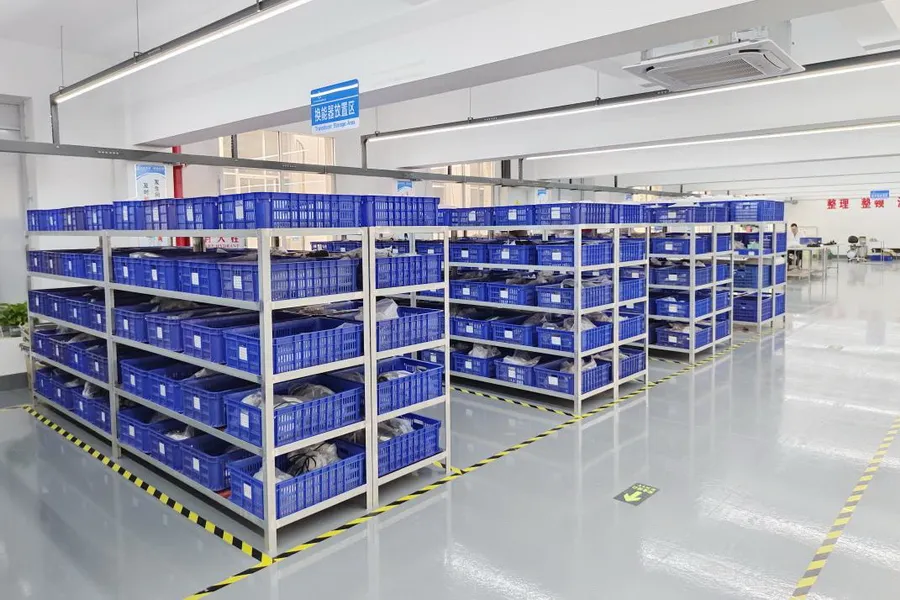

Finished Products
❓ Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional ultrasonic transducer, ultrasonic sensor, and ultrasonic level meter manufacturer established since 2008.
What is your quality control system?
We are an ISO 9001-2015 certified manufacturer with a strict quality control system. In addition to calibration, every product set undergoes temperature compensation and aging tests before shipment to ensure guaranteed quality.
What is the warranty on your products?
We provide a 12-month warranty from the shipment date for non-man-made damages.
Can we use our logo on the products? Do you provide customization?
Yes, we can apply your logo and provide customized products according to your specific requirements. OEM and ODM orders are welcome.
What is your Minimum Order Quantity (MOQ)?
We have no MOQ limits; small quantity orders are fully acceptable.
What are the transportation options?
We use express services such as DHL, Fedex, TNT, and UPS for freight prepaid. You may also use your own courier account for freight collect. For larger orders, we can arrange air or sea transport.
